Active And Reactive Meter Testing Stationary Power Source With Stable Power And Harmonic Output

China Active And Reactive Meter Testing Stationary Power Source With Stable Power And Harmonic Output supplier
Active And Reactive Meter Testing Stationary Power Source With Stable Power And Harmonic Output supplier Active And Reactive Meter Testing Stationary Power Source With Stable Power And Harmonic Output supplier

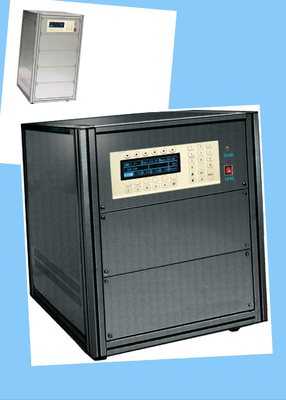

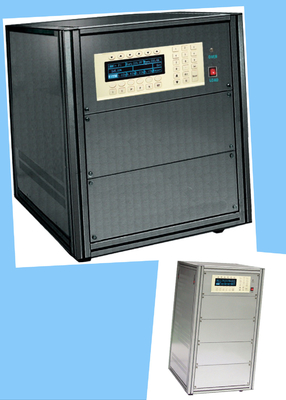

Large Image :  Active And Reactive Meter Testing Stationary Power Source With Stable Power And Harmonic Output

Product Details:

Place of Origin: China
Brand Name: GENY
Certification: ISO 9001
Model Number: YCS series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood case
Delivery Time: 30 days
Supply Ability: 45 sets/month
Contact Now
Detailed Product Description
Ambient Temperature: -10°C -- +40°C Voltage Output: 24V~300V
Harmonic Output: 2-21 Current Output: 1mA~120A
Relative Humidity: 35% -- 90% Phase: Single

Description:

  1. High accuracy and high stability source output
  2. With RS232 interface for automatic operation
  3. With keyboard for manual operation (optional).
  4. 2nd – 21st harmonic, output amplitude and degree can be programmed.
  5. Aluminum alloy materials, light and strong, anti-corrosion.
  6. With the protect function of overload, short voltage circuit and open current circuit.
  7. PC control software suit, easy operation and support secondary software development
  8. Power source system is stationary , which is very heavy at least 350Kg. It can be only placed on the ground that make sure it wouldn't be damaged.



Technical Specifications:



YCS-101-250

YCS-101-600

YCS-101-1200

YCS-101-2500

Voltage

Test voltage output (Phase-Neutral)

24V – 288V or customized

Power of the voltage output

100VA

250VA

500VA

1000VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Current

Test current output

1mA – 100A

Power of the current output

150VA

350VA

750VA

1500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Phase angle

Range

0 -- 360°

Resolution

0.01°

Setting accuracy

0.1°

Frequency

Range

45Hz – 65Hz

Resolution

0.01Hz



Voltage Supply

220V±10% or

50/60Hz±2Hz

3×220/380V±10% or customized

50/60Hz±2Hz

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 90%



Applications:

  1. Nation-level utility companies
  2. Governmental bureaus of metrology
  3. Power energy meter manufacturers

Primary Competitive Advantages:

  1. High quality product
  2. High power output (max. voltage power: 1000VA, current power: 1500VA)
  3. Extremely high power stability
  4. Distortion factor less than 0.3% for linear resistance loadActive And Reactive Meter Testing Stationary Power Source With Stable Power And Harmonic Output
