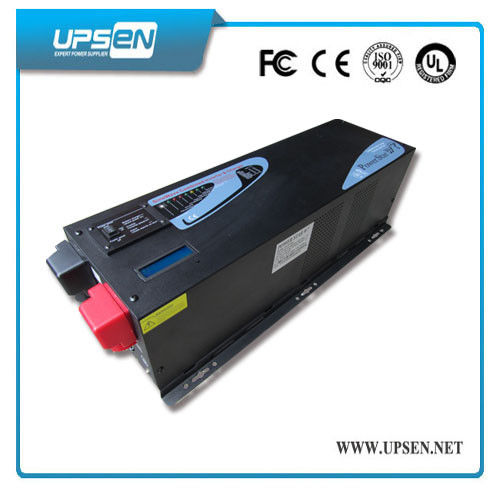

DC AC Inverter inbuilt Super AC Charger with UPS Function
model:Pure Sine Wave Inverter Charger Power Star Series PS8Kw-12Kw (1ph in/1ph out)
Applications:
UPSEN Power Star Inverter ,can be used withdifferent domestic appliance like TV, refrogerator ,fan,air conditioner.cooker,mirco-wave oven,etc.
Key Features:
1:Low battery voltage trip selectable, extracting max power from various batteries with different protections
2:3-step intelligent battery charging
3:Delay before transfer, extra protections for loads under generator mode
4:LCD status display available
5:RS232 communication port optional
6:Generator compatibly and external battery connection achievable
7:Solar Energy , City power , DC to AC can transfer automatically
8:Superior performance from CPU control technology
9:Start Auto restart while AC is recovering
10:Solar function: Charges battery from grid power on no-Solar time and charges battery from solar on solar time manually
Technical Specification

Power Star Series
Model No.	PS8K	PS10K		PS12K
Nominal Power	8KW	10KW		12KW
AC Input
Phase & Waveform	Single Phase & Pure Sine Wave
Voltage	220/230/240VAC
Acceptable Voltage	154-273VAC
Line Low Transfer	154V
Line Low Return	164V
Line high Transfer	273V
Line high Return	263V
Frequency	50Hz or 60Hz (Auto sensing)
Line Low Transfer	40Hz
Line high Transfer	80Hz
AC Output
Phase & Waveform	Single Phase & Pure Sine Wave(bypass mode sync to input)
Voltage	220/230/240VAC (Same as Input on bypass mode)
Voltage Regulation	±10%rms(bypass mode sync to input)
Frequency	50Hz or 60Hz (Auto sensing)
Crest Power	3 times of rating power
Short Circuit Protection	Yes,shutdown
Power Factor	0.9-1.0
DC Input
Battery Voltage	48V
Minimum Start Voltage	40V
Low Battery Alarm	44V
Low Battery Transfer	40V
High Voltage Alarm	64V
Max Charging Current	75A	85A		100A
Over Charge Voltage	62.8V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 75 Watts
Indicators
4-LED Display	Charge, Line, Inverter, Fault
LCD Display	Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off.

Audible Alarm	Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds.
Protections	low battery,over charging,over temp,over load
Communications	RS232/RJ11(Optional)
Enviromental
Operating Environment	0-40ºC,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	56	64		68
Dimension LWH(mm)	549450201mm		584450201mm
*Specification is subject to change without prior notice.
