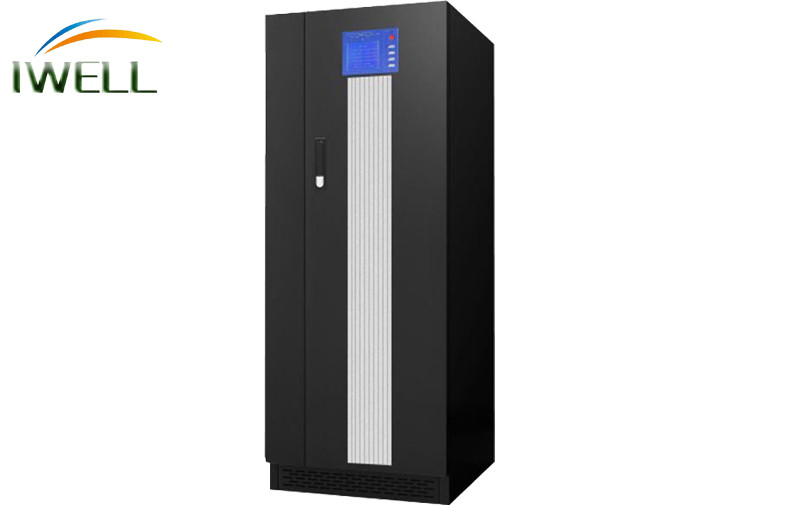

3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System

3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System
3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System

Large Image :  3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System

Product Details:
Place of Origin: China
Brand Name: IWELL
Certification: CE / FCC / ISO9001
Model Number: I33E20K
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: shipping carton + wooden packing
Delivery Time: 7-10 working days
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detailed Product Description
Type: Industrial Power Supply Capacity: 20Kva 16Kw
Wave: Pure Sine Wave Input / Output: 380Vac
Transformer: Isolated Transformer Frequency: 50 / 60Hz
Application: Networking Name: Uninterruptible Power Supply
Phase: Three Phase Protection: Overvoltage
High Light:

Uninterrupted Power Supply

,

industrial ups systems

3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 0



I33E20K 3 Phase 20Kva 380Vac IGBT Technology CPU Control Low Frequency Online UPS



3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 1
  • Advanced digital circuit system
  • Intelligent management of batteries status
  • Intelligent inspect and monitor UPS systems every second
  • Intelligent communication tool remote control
  • The sixth generation IGBT inverter technology

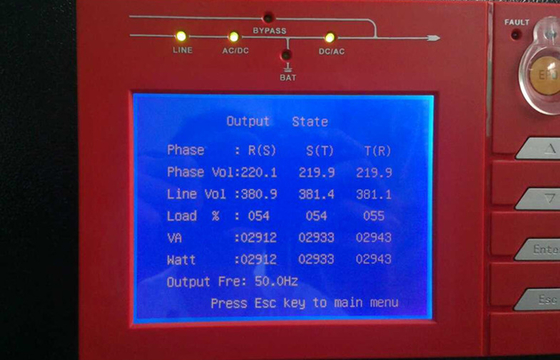

  • High definition screen information management technology, humanity LCD display show directly UPS status and operation, data records in table format, and events records, also can change language by main menu.
  • LED status shows operate steps and status directly.
  • GP5300 series UPS use touch screen with excellent ageing resistance function and case dealed with fluorin and carbon technology, lead it is environmental and durable; the UPS adopts knock-down modular design, ensure it easy to maintain; It is with new advanced turbofan which can release heat well and save energy; It also use non-circumfluence controlled circuit;
  • Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable.
  • well-equipped protection for alarm function and excellent input&output Undervoltage overflow, input surge, phase failure, battery overcharge and over discharge , output overload short circuit , over heat and so on.
  • High quality active features, adopts instantaneous control method and virtual value response control and so on. This function realizes high active adjust and decrease output voltage degree of distortion.
  • Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of equal, realize output imbalance 100% load.
  • Optional input harmonic filter or Twelve-pulse rectifier, can restrain input harmonic pollution efficiently, improve UPS input power factor, and minish input harmonic current.
  • Special set: can set UPS work status according to requirements of electric.

3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 2



3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 3

I33E20K 3 Phase 20Kva 380Vac IGBT Technology CPU Control Low Frequency Online UPS



Input

Input voltage

Rated voltage

380VAC

Line voltage

Phase

3Ф + N + PE(protective earth)



Turn on voltage range

380VAC±25%

Line voltage

Bypass voltage range

220VAC±25%

Phase voltage;

Could be adjusted by software.

Bypass low loss

165VAC

Bypass low comeback

Low loss +10VAC

Bypass high loss

275VAC

Bypass high comeback

High loss-10VAC

Line low loss/comeback

(165±5) VAC /(180±5) VAC

Line high loss/comeback

(275±5)VAC/(260±5)VAC

Input frequency

Rated frequency

50Hz

Could be adjusted by software.

Frequency low loss

(40~49)±0.2Hz(default:46Hz)

Frequency low comeback

Frequency low loss + 0.5Hz

Frequency high loss

(51~60)±0.2Hz(default:54Hz)

Frequency high comeback

Frequency high loss - 0.5Hz

Input power factor

Input power factor

0.7

220VAC,full R load

Generator

Support generator input

Generator rating≥2*UPS rating

Input current

Rated current

38A



Input protection

Rated protection

63A



Output

Output power

VA/watt

20kVA/16kW



Rated voltage

380VAC

Line voltage

Voltage range

200/208/220/230/240VAC(phase voltage)

Could be adjusted by software. 10% derating for 208VAC/200VAC.

Voltage regulation

±2%



Voltage distortion

≤8%

Full RCD load

≤3%

Full R load

DC offset

≤100mV



Transient response

≤9%

R load 0%~100%~0%

≤6%

R load 20%~100%~20%

Transient recovery

≤60ms voltage recovery to 90%

Full RCD load

Bypass output before turn-on

Yes



Crest ration

3:1



Output frequency range

Line mode

1.Same as input frequency(46Hz~54Hz)



2.50Hz(Input frequency>54Hz or Input frequency<46Hz)



Battery mode

(50+0.1) Hz



Slew rate

1 Hz/Sec



Efficiency

Line mode

> 82%

 R load

Battery mode

> 86%

 R load

Overload



line mode/battery mode

Overload warning only

105%±5%≤load

2Min,then transfer to bypass and alarm.

105%±5%<load≤125%±5%

30S,then transfer to bypass and alarm.

125%±5%<load≤150%±5%

0.5S,then transfer to bypass and alarm.

load>150%±5%

Automatically recovery

Yes



Short protection

Line/battery mode

Cut off output and alarm after 3S



Transfer time

Line to battery mode

0mS



Battery to line mode

0mS



Line to bypass mode

<4mS



Bypass to line mode

<4mS



Battery and charger

Battery

Rated voltage

384VDC



Protection

Low alarm voltage / comeback voltage

(361.6V±4V)/ (377.6V±4V)



Shutdown voltage

(320V±4V)/ (336V±4V)



Battery protection

Overcharge protection

(475V±4V)



Battery test

Battery weak

Support



Battery fault

Support



Charger

Output voltage

(440±2)VDC

Float charge voltage

Charge time

Determined by battery capacity



Charge current

10A

Could be set in the front panel, Max 25A

Interface

Alarm silence

Support



DC power turn-on

Support



Automatically restart

Support



alarm

Battery mode

Beep/4s



Battery low/charger fault

Beep/1s



UPS fault

Continuously beep



Overload

Beep/1s



Bypass mode

Beep/2Min



Communication

RS232/ RS485 interface

Support



Output dry contactor

Support



Intelligent slot

Support



Monitor software

Appending with UPS



Cooling

Force air cooling

Display

LCD displays UPS status

Support



Environment

Work temperature

0℃~40℃



Altitude

<1000m



Audible noise

≤70dB



Storage temperature

-15℃~45℃



Work humidity

20%~95%



Standard

EMS/EMI

Conducted

IEC EN62040-02



Radiated



Anti-interference

IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III



Safety

Safety

GB4943-2001/IEC62040-1



Transportation

Drop test

GB-T4857-18



Vibration test

B-WR1-129(GB-T14715-93)



Machinery features

Connection

Inlet

Wiring terminal block



Outlet

Wiring terminal block



External battery slot

Wiring terminal block



Size

UPS net weight and size

L*W*H(mm)

830*455*1055



Net weight(Kg)

208



UPS weight and package size

L*W*H(mm)

915*515*1215



weight(Kg)

250



Optional functions

60Hz

Support



Converter mode

Support



ECO mode

Support



EPO mode

Support





3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 4

3 Phase 20Kva 16Kw Pure Sine Wave UPS Home / Office UPS System 5
