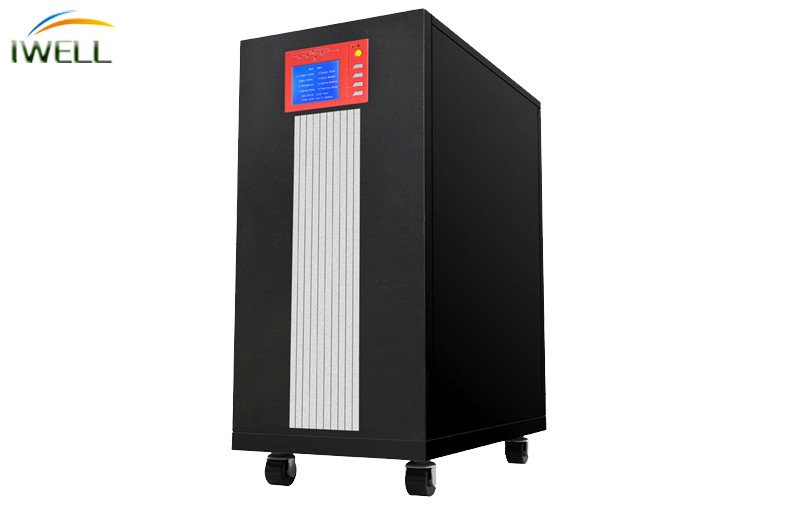

Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery

China Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier
Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery supplier

Large Image :  Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery

Product Details:

Place of Origin: China
Brand Name: IWELL
Certification: CE/FCC/ISO9001
Model Number: I33E10K, I33E20K, I33E30K, I33E40K

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: shipping carton
Delivery Time: 7-10 working days
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Phase: Three Phase Wave: Pure Sine Wave
Power Factor: 0.8 Transfer Time: 0ms
Input/Output Voltage: 380Vac/400Vac Transformer: Isolated Transformer
Capacity: 10Kva,20Kva,30Kva, 40Kva Frequency: 50/60Hz
Battery: Lead Acid Battery Application: Industrial Equipment

Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery



380Vac / 400Vac 10Kva-200Kva Double Conversion Low Frequency Online UPS Three Phase Online UPS



Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery

  • DSP System, IGBT Technology
  • Environment Friendly
  • Active input power factor correction (PFC)
  • Wide range of input voltage and frequency
  • Zero power switch delay
  • Active Load Management
  • Sufficient Expansion Slots
  • The load power factor is 0.8
  • Generator Supportable
  • Large-screen LCD
  • Wide in-put voltage range
  • Advanced true double conversion On-line technology
  • Deal for Data Centers in network and Industrial applications
  • Perfect for the most demanding and delicate of applications

Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery

  • Computers
  • Home Appliance, such as Fans and lights
  • Office, like computers with Printers
  • Aeronaoutics & Astronautics
  • Electronic & Telecom
  • Army Technology
  • Securities System
  • Sensitive Electronic Equipment
  • Wind Power System
  • Production Equipment
  • Military
  • Medical Systems
  • Networking
  • Instrumentation
  • Servers and so on

Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery



Energy Saving 10Kva / 20Kva Low Frequency Online UPS With Lead Acid Battery

I33E SERIES 10-30Kva  (3 phase in 3 phase out)

MODEL

I33E10K

I33E15K

I33E20K

I33E30K

Input Mains

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Bypass Input

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Output

Rated Power

10KVA/8KW

15KVA/12KW

20KVA/16KW

30KVA/24KW

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Stability

380V±2%

THDV

≤3%

Linear Load

≤10%

Non-linear Load

Output Power factor

0.8(Lag)

Tracking Fruquency & Range(Hz)

46Hz~64Hz

Fruquency & Stability(Battery Inverter)

(50+0.1)Hz/60+0.1)Hz

Overload Capability

Less than 105%±5% for overload alarm;

105%±5%~125%±5% for 2 minutes;

125%±5%~150%±5% for 30 second;

More than 150%±5% for 0.5 second;

Converting time(Normal Mode)

<1mS

Converting time(ECO Mode)

<25mS

System

System Efficiency(Linear Load)

≥80%

≥83%

≥85%

≥88%

System Efficiency(ECO Mode)

≥98%

Display

LCD+LED

EMS/EMI

Transmission

EN50091-2

Radiation

EN50091-2 CLASS-A

Harmonic Current

IEC1000-3-4

Resisting Interference

IEC 61000-4-2.3.4..6.8.9.11 Level III, IEC61000-4-5 Level IV

Safety Requirements

CCEE

Noise Level(1M)

≤55dB

Isolate Impedance(Ω)

>2M(500VDC)

Surge Current Protection

IEC60664-1 IV

Protecting level

1P21

Environment

Operating Temperature

0°C - 40°C

Elevation

<1000m

Storing Temperature

-15°C - 45°C

Operation Humidity

20% - 95%

Battery

192VDC(12V x 16)

384VDC(12V x 32)

Dimension(Width x height x length)mm

1045 x 455 x 830

Packing Size (Width x height x length)mm

525 x 1250 x 925



I33E SERIES 30-80Kva  (3 phase in 3 phase out)

MODEL (3 Phase Input/3 Phase Output)

I33E30K

I33E40K

I33E60K

I33E80K

Input Mains

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Bypass Input

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Range(V)

380V±25%

Frequency & Range(Hz)

46Hz-54Hz

Output

Rated Power

30KVA/24KW

40KVA/32KW

60KVA/48KW

80KVA/64KW

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage & Stability

380V±2%

THDV

Linear Load

≤3%

Non-linear Load

≤8%

Output Power factor

0.8(Lag)

Tracking Fruquency & Range(Hz)

46Hz~64Hz

Fruquency & Stability(Battery Inverter)

(50+0.1)Hz/60+0.1)Hz

Overload Capability

Less than 105%±5% for overload alarm;

105%±5%~125%±5% for 2 minutes;

125%±5%~150%±5% for 30 second;

More than 150%±5% for 0.5 second;

Converting time(Normal Mode)

<1mS

Converting time(ECO Mode)

<25mS

System

System Efficiency(Linear Load)

≥88%

≥89%

≥90%

System Efficiency(ECO Mode)

≥96%

Display

LCD+LED

EMS/EMI

Transmission

EN50091-2

Radiation

EN50091-2 CLASS-A

Harmonic Current

IEC1000-3-4

Resisting Interference

IEC 61000-4-2.3.4..6.8.9.11 Level III, IEC61000-4-5 Level IV

Safety Requirements

GB4943-2001/IEC62040-1

Noise Level(1M)

≤55dB

Isolate Impedance(Ω)

>2M(500VDC)

Surge Current Protection

IEC60664-1 IV

Environment

Operating Temperature

0°C - 40°C

Elevation

<1000m

Storing Temperature

-15°C - 45°C

Operation Humidity

20% - 95%

Battery

384VDC



I33E SERIES 100- 200Kva  (3 phase in 3 phase out)

MODEL

I33E100K

I33E120K

I33E160K

I33E200K

InputMains

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage& Range(V)

380V±25%

Frequency& Range(Hz)

46Hz-54Hz, 56Hz-64Hz

Bypass Input

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage& Range(V)

380V±25%

Frequency& Range(Hz)

46Hz-54Hz, 56Hz-64Hz

Output

Rated Power

100KVA

120KVA

160KVA

200KVA

80KW

96KW

128KW

160KW

Rated Voltage(V)

380V(Line Voltage)

Rated Voltage& Stability

380V±2%

THDV

Linear Load

≤3%

Non-linear Load

≤8%

Output Power factor

0.8(Lag)

Tracking Fruquency & Range(Hz)

46Hz-54Hz, 56Hz-64Hz

Fruquency & Stability

(50±0.1)Hz, (60±0.1)Hz

Overload

Less than 105%±5% for overload alarm;
105%±5%~125%±5% for 2 minutes;
125%±5%~150%±5% for 30 second;
More than 150%±5% for 0.5 second;

Capability

Converting time (Normal Mode)

<1mS

Converting time (ECO Mode)

<25mS

System

System Efficiency  (Linear Load)

≥90%

Display

LCD+LED

EMS
/EMI

Transmission

IEC EN62040-02

Radiation

Resisting

IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III

Interference

Safety Requirements

GB4943-2001/IEC62040-1

Noise Level (1M)

≤70dB

Isolate Impedance (Ω)

>2M(500VDC)

Surge Current  Protection

IEC60664-1 IV

Environment

Operating Temperature

0℃ - 40℃

Elevation

<1000m

Storing

(-15℃ - 45℃)

Temperature

Operation

20% - 95%

Humidity

Battery

384VDC

UPS Size(W x H x D)mm

850x1600x800

1300x1900x900

Package Size(WxHxD)mm

920x1777x870

1380x2055x986
