Product Details:
Payment & Shipping Terms:
|
| Product Name: | Low Frequency Ups | Phase: | 3phase +N+G |
|---|---|---|---|
| Voltage: | 380VAC/400V±25% Or 208v+/-25% | Frequency: | 50/60Hz±4hz(Line Mode),50/60Hz±0.1Hz(battery Mode) |
| Floating Voltage: | 410/432VDC | Input /output Device: | Terminal Block |
| High Light: | Online lowe frequency ups,low frequency online ups |
||

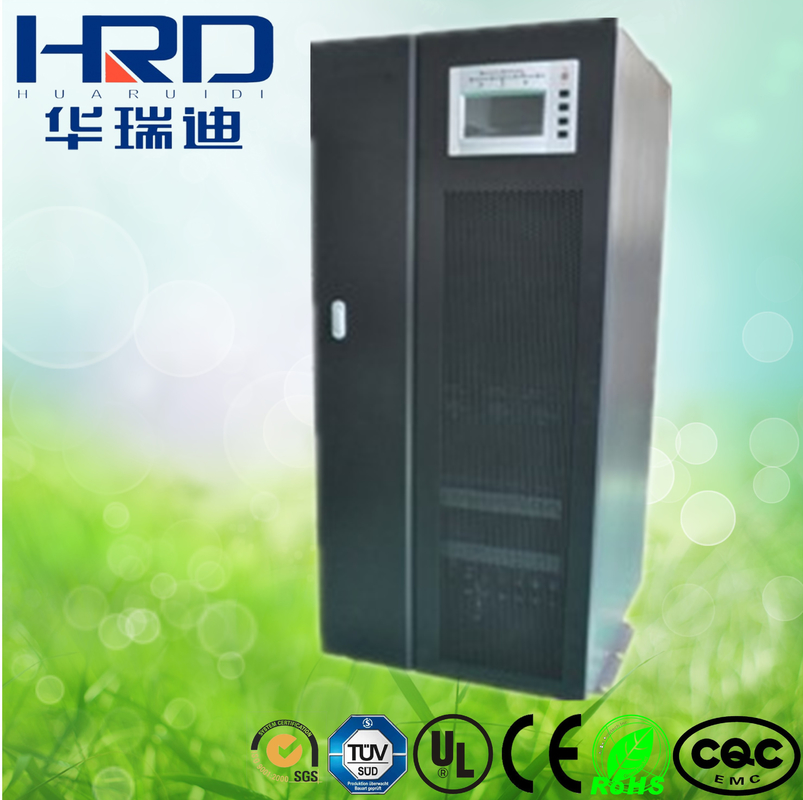

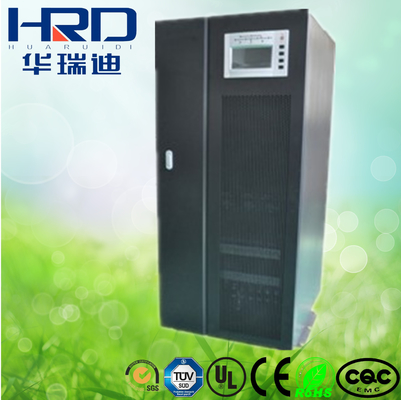

Large Power Online Low Frequency UPS , 3 Phase UPS 10KVA - 200KVA
Introduction:
POWERVALUE SERIES 3/3phase large power UPS(10kVA-200kVA), offer advanced DSP control, high speed 16 bits digital IC, DDC control technology, also use advanced high power IGBT and SCR, it is a digital, Informationization, Networking, Online Intelligent Pure Sine-wave Uninterruptible Power Supply, which is based on reliable, advanced, high efficiency digital/analog hybrid technology. POWERVALUE
3:3 phase SERIES can supply stable complete protection for your critical equipment.
Ideal Application:
Finance, Telecom, Insurance, Traffic, Taxation, Military, Security, Energy, Education, Government, Industry, etc.
Features&Benefits:
Pure sine wave output,true online double conversion
Output with isolation transformer
7 inch color LCD
Can be set to ECO mode
With EPO function
Can be with 100% unbalance load
Adopt the fourth layer PCB,and SMD technology
Sixth generation IGBT, much higher efficiency, lower temperature, more reliable
Full protection, overload, over voltage, short circuit, over temperature etc
Cold start
Generator compatible
EVENT LOG 256 LOGS
Advanced parallel function
With RS232 and RS485 standard collocate,
Option SMMP and dry contact connection
Option battery manage function
|
Model |
PV3310 |
PV3320 |
PV3330 |
PV3340 |
PV3360 |
PV3380 |
PV33100 |
PV33120 |
PV33160 |
PV33200 |
||
|
Capacity |
10Kva |
20Kva |
30Kva |
40Kva |
60Kva |
80Kva |
100Kva |
120Kva |
160Kva |
200Kva |
||
|
AC INPUT |
||||||||||||
|
Phase |
3phase +N+G |
|||||||||||
|
Voltage |
380VAC/400V±25% or 208v+/-25% |
|||||||||||
|
Frequency |
50/60Hz±4hz(Line Mode),50/60Hz±0.1Hz(battery mode) |
|||||||||||
|
BYPASS INPUT |
||||||||||||
|
phase |
3phase +N+G |
|||||||||||
|
Voltage |
380VAC/400VAC or 208v (+/-15%) |
|||||||||||
|
Frequency |
50Hz±5%,60Hz±5% |
|||||||||||
|
OUTPUT |
||||||||||||
|
Phase |
3phase+N+G |
|||||||||||
|
Voltage |
380VAC/400V or 208v±1% |
|||||||||||
|
Frequency |
50/60Hz±10%,60Hz±10% |
|||||||||||
|
charging current |
3A～30A settable(depend on battery capacity) |
|||||||||||
|
Battery |
||||||||||||
|
Max.discharge current(A) |
28 |
56 |
85 |
113 |
169 |
225 |
282 |
338 |
450 |
560 |
||
|
Battery quantity |
30/32pcs |
|||||||||||
|
battery voltage |
360/384VDC(348-384V acceptable) |
|||||||||||
|
Floating voltage |
410/432VDC |
|||||||||||
|
Charging current |
3A～30A(0.1C according to battery capacity)settable |
|||||||||||
|
Nominal voltage |
380V/400VAC±1%(steady load),380V/400VAC±5%(load fluctuate) |
|||||||||||
|
Nominal frequency |
50Hz±0.05%,60Hz±0.05%(battery supply power) |
|||||||||||
|
Frequency |
＜±0.05% (un Synchronization);＜±2% (Synchronization) |
|||||||||||
|
Crest factor |
3:1 |
|||||||||||
|
Total harmonic distortion |
Linearity load ＜3%;non-linearity load＜5% |
|||||||||||
|
Dynamic load voltage transient |
＜±5%(from 0 to 100% abrupt change) |
|||||||||||
|
Moment restart time |
＜10ms |
|||||||||||
|
Balance load voltage |
＜±1%;＜±5%(imbalance load voltage) |
|||||||||||
|
Overload capability |
125% 1min,150% 1S |
|||||||||||
|
Efficiency |
＞82%(at 100% load) |
|||||||||||
|
Working temperature |
0～40℃ |
|||||||||||
|
Humidity |
0%～90%(non~condensing) |
|||||||||||
|
Type of cooling |
Forced draught |
|||||||||||
|
Noise dB |
40～50(1m) |
45～55(1 m) |
55～60(1m) |
60～65(1m) |
||||||||
|
Physical |
||||||||||||
|
Case color |
Gray /black(option) |
|||||||||||
|
Input cable |
The bottom / back |
|||||||||||
|
Dimension W×D×H(mm) |
600*620*1200 |
600*720*1460 |
950*820*1780 |
1380*850*1780 |
||||||||
|
G .W(kg) |
225 |
250 |
310 |
350 |
410 |
550 |
850 |
920 |
1320 |
1670 |
||
|
Input /output device |
Terminal Block |
|||||||||||
All specification subject to change without further notice
