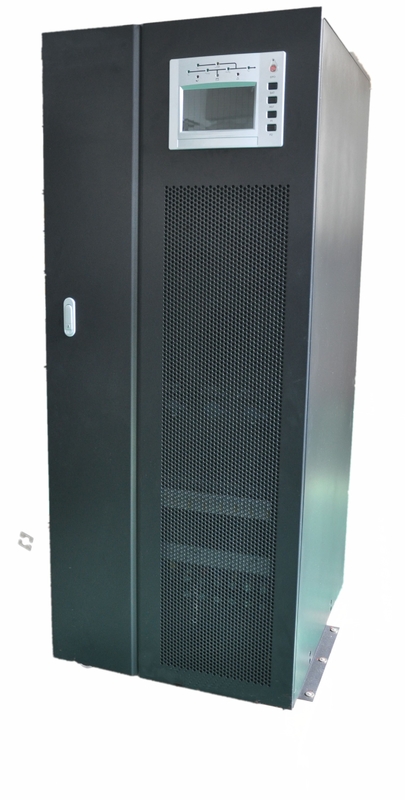

SMD Online Low Frequency 3 Phase UPS
Quick Detail:
1)Protection:Overvoltage,Low battery, overload,overheat,short circuit
2) Application: Networking,Computer room,Datacenter,server room
3) Option SMMP and dry contact connection
Introduction:
POWERVALUE SERIES 3/3phase large power UPS(10kVA-160kVA), offer advanced DSP control, high speed 16 bits digital IC, DDC control technology, also use advanced high power IGBT and SCR, it is a digital, Informationization, Networking, Online Intelligent Pure Sine-wave Uninterruptible Power Supply, which is based on reliable, advanced, high efficiency digital/analog hybrid technology. POWERVALUE
3:3 phase SERIES can supply stable complete protection for your critical equipment.
Ideal Application:
Finance, Telecom, Insurance, Traffic, Taxation, Military, Security, Energy, Education, Government, Industry, etc.
Features&Benefits:
Pure sine wave output,true online double conversion
Output with isolation transformer
7 inch color LCD
Can be set to ECO mode
With EPO function
Can be with 100% unbalance load
Adopt the fourth layer PCB,and SMD technology
Sixth generation IGBT, much higher efficiency, lower temperature, more reliable
Full protection, overload, over voltage, short circuit, over temperature etc
Cold start
Generator compatible
EVENT LOG 256 LOGS
Advanced parallel function
With RS232 and RS485 standard collocate,
Option SMMP and dry contact connection
Option battery manage function
|
Model |
PV3310 |
PV3315 |
PV3320 |
PV3330 |
PV3340 |
PV3360 |
PV3380 |
PV33100 |
PV33120 |
PV33160 |
||||
|
Capacity (KVA/KW) |
10/8kW |
15/12 kW |
20/16 kW |
30/24 kW |
40/32 kW |
60/48 kW |
80/64 kW |
100/80 kW |
120/96 kW |
160/108kW |
||||
|
|
||||||||||||||
|
AC INPUT |
||||||||||||||
|
Phase |
3phase +N+G |
|||||||||||||
|
Voltage |
380VAC/400V±25% or 208v+/-25% |
|||||||||||||
|
Frequency |
50/60Hz±4hz(Line Mode),50/60Hz±0.1Hz(battery mode) |
|||||||||||||
|
|
|
|||||||||||||
|
BYPASS INPUT |
|
|||||||||||||
|
phase |
3phase +N+G |
|||||||||||||
|
Voltage |
380VAC/400VAC or 208v (+/-15%) |
|||||||||||||
|
Frequency |
50Hz±5%,60Hz±5% |
|||||||||||||
|
OUTPUT |
||||||||||||||
|
Phase |
3phase+N+G |
|||||||||||||
|
Voltage |
380VAC/400V or 208v±1% |
|||||||||||||
|
Frequency |
50/60Hz±10%,60Hz±10% |
|||||||||||||
|
Microcomputer setting charge current |
3A～30A(depend on battery capacity) |
|||||||||||||
|
Battery |
||||||||||||||
|
Max.discharge current(A) |
28 |
42 |
56 |
85 |
113 |
169 |
225 |
282 |
338 |
450 |
||||
|
Battery quantity |
32pcs |
|||||||||||||
|
Nominal battery voltage |
360/384VDC(348-384V acceptable) |
|||||||||||||
|
Floating voltage |
410/432VDC |
|||||||||||||
|
Charge current |
3A～30A(depend on battery capacity) |
|||||||||||||
|
Nominal voltage |
380V/400VAC±1%(steady load),380V/400VAC±5%(load fluctuate) |
|||||||||||||
|
Nominal frequency |
50Hz±0.05%,60Hz±0.05%(battery supply power) |
|||||||||||||
|
Frequency stability; Out sync |
＜±0.05% |
|||||||||||||
|
Frequency stability; Synchronization |
＜±2% |
|||||||||||||
|
Crest factor |
3:1 |
|||||||||||||
|
Total harmonic distortion |
Linearity load ＜3%;non-linearity load＜5% |
|||||||||||||
|
Dynamic load voltage transient |
＜±5%(from 0 to 100% abrupt change) |
|||||||||||||
|
Moment restart time |
＜10ms |
|||||||||||||
|
Balance load voltage |
＜±1%;＜±5%(imbalance load voltage) |
|||||||||||||
|
Overload capability |
125% 1min,150% 1S |
|||||||||||||
|
Efficiency load 100% |
＞80% |
|||||||||||||
|
Working temperature |
0～40℃ |
|||||||||||||
|
Humidity (non~condensing) |
0%～90% |
|||||||||||||
|
Type of cooling |
Forced draught |
|||||||||||||
|
Noise dB |
40～50(1m) |
45～55(1m) |
55～65(1m) |
55～65(1m) |
||||||||||
|
Case color |
Gray /black(option) |
|||||||||||||
|
Input cable |
The bottom / back |
|||||||||||||
|
Dimension W×D×H(mm) |
600*620*1200 |
600*620*1260 |
650*720*1500 |
960*850*1780 |
1380*850*1780 |
|||||||||
|
Gross Weight(kg) |
225 |
250 |
310 |
350 |
410 |
470 |
610 |
920 |
970 |
1050 |
||||
|
Input /output device |
Terminal |
|||||||||||||
All specification subject to change without notice.
Customised specification is acceptable .
