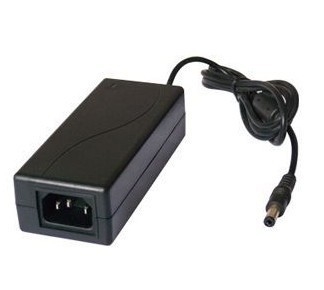

PDA CCTV Camera Spare Parts , 12V 2.51A Switching Power Supply

PDA CCTV Camera Spare Parts , 12V 2.51A Switching Power Supply

Switching Power Supply

Model No.: 36W series  (C14 insert)

FEATURE

＊ Desktop type   (C14 insert)

＊ Universal input

＊ Optional output connector

＊ Overload and short circuit protection, LPS

ENVIRONMENTION

＊ Operationg temperature:0℃----+40℃

＊Operationg humidity:5%--95% relative humidity

ELECTRICAL

＊ Input Voltage: 100-264V ac

＊ Input Frequency Range: 47Hz～63Hz

＊ Input Current: 0.7A(Max)at AC100V

＊ Efficiency: 85%(MIN)at Rated Voltage

＊ DC Output Power: 36w (max)

＊ Ripple and Noise: ≤120Mv at full road with 20MHz bandwidth

＊ Turn On Delay Time: ≤3S  (AC:110V and full load)

APPLICATION FOR

＊Communication and Digital Device,PDA,Scanner,network equipment

SAFTY CERTIFICATION

CE FCC UL PSE EK C-TICK CB
