Product Details:
Payment & Shipping Terms:
|
| Type: | Online | Output Power Factor: | 0.8 |
|---|---|---|---|
| Phase: | Three Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | Digital LCD Display | H.S. Code: | 8504402000 |
| High Light: | online ups suppliers,online ups power supply |
||

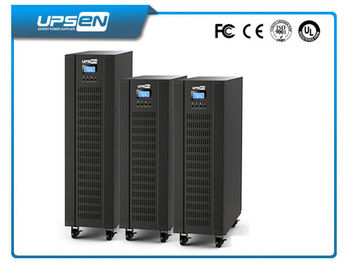

3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS
Model: High Frequency Online UPS View Star Series 10K-30Kva (3ph in/3ph out)
Key Features
| Technical Specification | |||||
| VIEW STAR 3P/3P 10K/15K/20K/30K ONLINE UPS SELECTION GUIDE | |||||
| MODEL | VS33 10K(L) | VS33 15K(L) | VS33 20K(L) | VS33 30K(L) | |
| PHASE | 3 phase in / 3 phase out | ||||
| CAPACITY | 10000 VA / 8000W | 15000VA /12000W | 20000VA /16000W | 30000VA / 24000W | |
| INPUT | |||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||
| Voltage Range | 305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load |
||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||
| Power Factor | ≧ 0.99 @ 100% load | ||||
| OUTPUT | |||||
| Output Voltage | 3 x 400 VAC (3Ph+N) | ||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (max.) | ||||
| Harmonic Distortion | ≦ 2 % THD (Linear Load) ≦ 5 % THD (Non-linear Load) | ||||
| Transfer Time | AC mode to Battery mode | zero | |||
| Inverter to Bypass | zero | ||||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||
| EFFICIENCY | |||||
| AC Mode | 89% | 89% | 89% | 90% | |
| Battery Mode | 86% | 88% | 87% | 89% | |
| BATTERY | |||||
| Standard Model | Battery Type | 12 V / 9 AH | |||
| Numbers | 20pcs(18-20 adjustable) |
20 pcs (18-20 adjustable)x 2 strings |
20pcs (18-20adjustable) x 3 strings | ||
| Typical Recharge Time | 9 hours recover to 90% capacity | ||||
| Charging Current (max.) | 1A | 2A | 2A | 4A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
| Numbers | |||||
| Charging Current (max.) | 4A | 4A | 4A | 12A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| INDICATORS | |||||
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding twice every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Standard Model |
Dimension, DXWXH(mm) |
815 x 250 x 826 | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 300 x 1000 |
| Net Weight (kgs) | 109 | 164 | 164 | 233.5 | |
| Long-run Model |
Dimension, DXWXH(mm) |
592 x 250 x 826 | 592 X 250 X 826 | 592 X 250 X 826 | 815 x 250 x 826 |
| Net Weight (kgs) | 38 | 40 | 40 | 64 | |
| ENVIRONMENT | |||||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter | |||
| MANAGEMENT | |||||
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
* L means long-run model
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
