3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS

Large Image : 3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	View Star Series 1-3Kva

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Cartons & Wooden Pallet
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Type:	Online	Output Power Factor:	0.8
Phase:	Three Phase	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	Digital LCD Display	H.S. Code:	8504402000
Highlight:	online ups suppliers

3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS

Model: High Frequency Online UPS View Star Series 10K-30Kva (3ph in/3ph out)

Key Features

True double-conversion
DSP technology guarantees high performance
Output power factor 0.8
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
ECO mode operation for energy saving (ECO)
Accepts dual-mains inputs
Emergency power off function (EPO)
Generator compatible
SNMP+USB+RS-232 multiple communications
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers
Maintenance bypass available
Optional N+X parallel redundancy

Technical Specification
VIEW STAR 3P/3P 10K/15K/20K/30K ONLINE UPS SELECTION GUIDE
MODEL		VS33 10K(L)	VS33 15K(L)	VS33 20K(L)	VS33 30K(L)
PHASE		3 phase in / 3 phase out
CAPACITY		10000 VA / 8000W	15000VA /12000W	20000VA /16000W	30000VA / 24000W
INPUT
Nominal Voltage		3 x 400 VAC (3Ph+N)
Voltage Range		305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load
Frequency Range		46~54 Hz or 56~64Hz
Power Factor		≧ 0.99 @ 100% load
OUTPUT
Output Voltage		3 x 400 VAC (3Ph+N)
AC Voltage Regulation (Batt. Mode)		± 1%
Frequency Range (Synchronized Range)		46~54Hz or 56~64Hz
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		≦ 2 % THD (Linear Load) ≦ 5 % THD (Non-linear Load)
Transfer Time	AC mode to Battery mode	zero
	Inverter to Bypass	zero
Waveform (Batt. Mode)		Pure Sine Wave
EFFICIENCY
AC Mode		89%	89%	89%	90%
Battery Mode		86%	88%	87%	89%
BATTERY
Standard Model	Battery Type	12 V / 9 AH
	Numbers	20pcs(18-20 adjustable)	20 pcs (18-20 adjustable)x 2 strings		20pcs (18-20adjustable) x 3 strings
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current (max.)	1A	2A	2A	4A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers
	Charging Current (max.)	4A	4A	4A	12A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension, DXWXH(mm)	815 x 250 x 826	815 x 250 x 826	815 x 250 x 826	815 x 300 x 1000
	Net Weight (kgs)	109	164	164	233.5
Long-run Model	Dimension, DXWXH(mm)	592 x 250 x 826	592 X 250 X 826	592 X 250 X 826	815 x 250 x 826
	Net Weight (kgs)	38	40	40	64
ENVIRONMENT
Operation Humidity		0-95 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 60dB @ 1 Meter	Less than 65dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser

* L means long-run model

Competitive Advantages:

1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

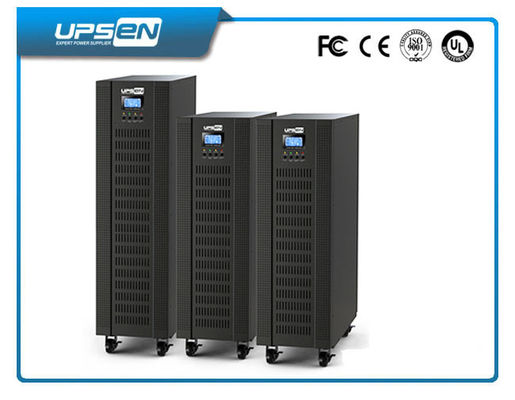

3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS 0

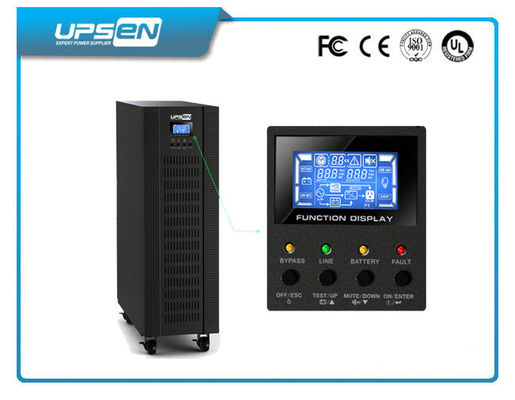

3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS 1

3 Phase 380Vac 400Vac 415Vac Uninterruptible Power Supply 10KVA / 20KVA / 30 KVA Online UPS 2
