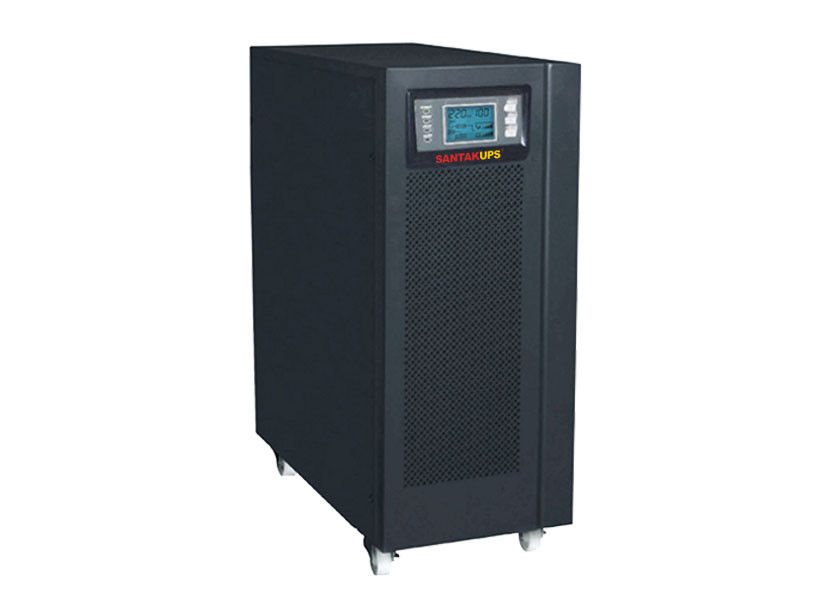

Three Phase UPS

MODEL

Castle Series

C6KVA

C6KS

C10KVA

C10KS

CAPACITY

VA/W

6000VA/4800W

10000VA/8000W

INPUT

Voltage Range

120VAC-275VAC

Frequency Range

46Hz-54Hz

Phase

Single phase with ground

Power Factor

≧0.99

Generator Input

Support

OUTPUT

Voltage

220VAC

Voltage Regulation

± 1%

Frequency
(Syn Range)

46 ~ 54Hz

Frequency
(Batt Mode)

50Hz±0.1%

Current Crest Ratio

3:01

Harmonic
Distortion

<2%(liner 100% load)

Waveform

Pure Sinewave

Outlet

Terminal

Terminal

Overload
Capacity

105%-125%:turn to bypass after 1min;
125%-150%:turn into bypass after 30s;
>150%: turn to bypass after 0.5s

EFFICIENCY

AC Mode

>90%

Battery Mode

>90%

BATTERY

Battery Type

12V/7Ah

Depending on capacity

 of external batteries

12V/7Ah

Depending on

capacity of external

batteries

Batteries Nos.

16

16

Backup Time
(Half Load)

>5min

>5 min

Recharge Time
(to 90%)

8Hours

8Hours

Charging Current(Max)

1.0A

5A

1.0A

5A

Rated Charging Voltage

221VDC

221VDC

TRANSFER TIME

AC to DC

Zero

Inverter to Bypass

4ms (Typical )

INDICATOR

LCD display

Input/Output/Battery/Load /Fault etc.

AUDIBLE ALARM

Battery Mode

Sounding every 4 seconds

Low Battery

Sounding every second

Overload

Sounding twice every second

Fault

Continuously Sounding

DIMENSION

Tower Case (D*W*H)

260×570×717mm

260×570×717mm

WEIGHT

Tower Case

63kg

20kg

73.5kg

23.5kg

ENVIRONMENT

Operating Environment

0-40° C

Relative Humidity

20-90% (NON-CONDENSING)

Noise Level

<45dB @ 1 Meter

INTERFACE

Smart RS-232 / USB
(Option)

Software supports Windows Family, Linux, Sun Solaris, IBM Aix,

Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC

External Slot (Option)

External Type of SNMP / AS400 Relay Card / RS485
