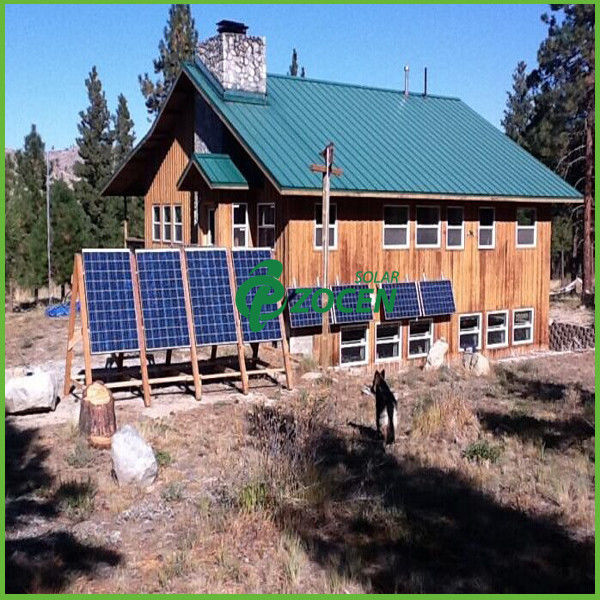

2.24kw off-Grid Household Solar System for Daily Power Consumption 8KWH

2.24KW Off-Grid Household Solar System for Daily Power Consumption 8KWH

1> System Description

Off-grid PV system convert sun radiation energy into direct current produced by solar panels, and charge-discharges to the battery through controller, then provides power to DC loads or provides power to AC loads through inverter, with/without connection to state grid. The system consists of PV array, charge controller, battery, off-grid inverter and so on.

2> Application
It is used in harsh area such as plateau, islands, remote mountain areas and field working, as well as city area where there's lack of grid power. It also can be applied in communication base station(GSM site), advertising lamp box, street lamp and so on.

3> System configuaration:

Item No.			ZCOG-2240		Q'ty	Picture
System voltage			48VDC		/	/
Solar Panel	Pmax		280W, poly		8pcs
	Vmp		36.6V
	Imp		7.65A
Inverter	Output wave		Pure sine wave		1pc
	Output voltage		AC220V
	Output frequency		50HZ
	Capacity		2KW
	Overload ability		120%, 60 seconds
	Max. efficiency		90%
	Phase Number		Single phase
Battery	Battery type		Maintenance free lead-acid batteries		8pcs
	Capacity		12V 150AH
Controller	Rated voltage		48VDC		1pc
	Max. PV Power		3KW
	Control mode		PWM
	Protection		Reverse polarity, short-circuit, overload,over-charge, low voltage
Combiner Box	Input Strings		4		1pc
	Max. DC Input Current in Each Route(A)		10
	IP protection class		IP65(outside)
Battery rack	Battery layout		5pcs batteries in series; 2 floors		1set
	Material		Iron, Q235
	Surface treatment		Hot dip galvanized, plastic-coating
Solar Panel bracket	Type		Rooftop/Ground Mounting type		1set
	Wind load		Max. 55m/s
	Snow load		Max. 1.5KN/㎡
	Module orientation		Vertical or horizontal
	Setting angle		5°-60°
	Surface treatment		Stainless steel, galvanized, anodise
	Materails		Stainless steel, SUS304
			Aluminum 6063-T5
PV Cables	Area(m㎡)		1*10		1set
	Conductor Dia.(mm)		4.13
	Insulation Thickness(mm)		0.9
	Outer Dia(mm)		8.3±0.2
	Conductor resistance (25℃) (Ω/km)		1.95
	Weight rated(kg/km)		153.9
	Length(m)		40
Main accessories	PV Connetors		MC4, 5pcs		1set
	4m㎡ PV Cables(m)		100

5> Warranties

• Whole System: 2 years warranty
• Solar panel: 10 years with 100% product material warranty, 25 years 80% rated power putput
• Battery: 2 years, Lifespan more than 5 years
• Inverter: 2 years
• Combiner box: 2 years
• Battery rack: 5 years on material
• Solar panel bracket: 10 years on material
• PV Cables: 10 years
