1> What is off-grid solar system?

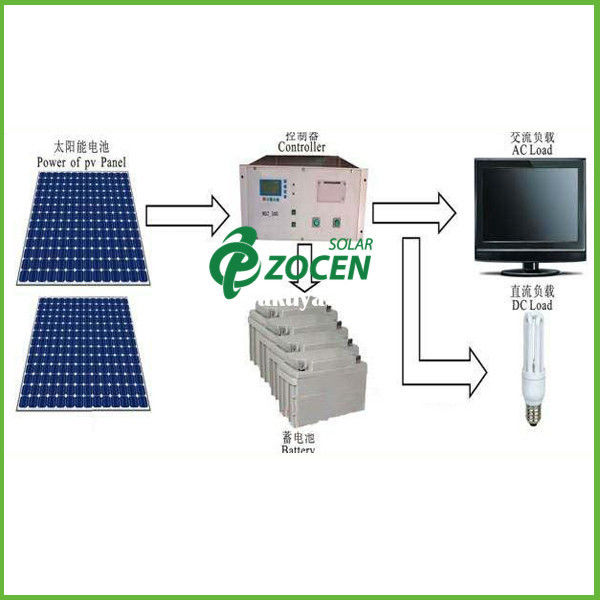

Off-grid Solar System is widely used in remote mountain areas, no electricity islands, communication base stations, street lamps and other application scopes. The system consists of solar panel, charge controller, battery, off grid inverter, DC load and AC load. Under solar radiation, the solar panel array converts solar energy into electrical energy to power the load through the PV controller, and charge the battery bank at the same time, when no solar radiation, the battery bank power the DC load through the charge controller, or power the AC load through the inverter which converts the DC electricity into AC electricity.
With various design, DS series DC solar power system can provide stable DC power to home system, small office system and street lamp or camera.

2> Applications:

• Home power system
• Small office power system
• Mountain power system
• Island power system
• Street lamp or camera

3> Warranties

• Whole System: 2 years warranty
• Solar panel: 10 years with 100% product material warranty, 25 years 80% rated power putput
• Battery: 2 years, Lifespan more than 5 years
• Inverter: 2 years
• Combiner box: 2 years
• Battery rack: 5 years on material
• Solar panel bracket: 10 years on material
• PV Cables: 10 years

4> Product Specification

Item No.			ZCOG-5600		Q'ty	Picture
System voltage			24VDC		/	/
Solar Panel	Pmax		140W, poly		4pcs
	Vmp		17.4V
	Imp		8.04A
Inverter	Output wave		Pure sine wave		1pc
	Output voltage		AC220V
	Output frequency		50HZ
	Capacity		1KW
	Overload ability		120%, 60 seconds
	Max. efficiency		90%
	Phase Number		Single phase
Battery	Battery type		Maintenance free lead-acid batteries		2pcs
	Capacity		12V 150AH
Controller	Rated voltage		24VDC		1pc
	Max. PV Power		1KW
	Control mode		PWM
	Protection		Reverse polarity, short-circuit, overload,over-charge, low voltage
Solar Panel bracket	Type		Rooftop/Ground Mounting type		1set
	Wind load		Max. 55m/s
	Snow load		Max. 1.5KN/㎡
	Module orientation		Vertical or horizontal
	Setting angle		5°-60°
	Surface treatment		Stainless steel, galvanized, anodise
	Materails		Stainless steel, SUS304
			Aluminum 6063-T5
PV Cables	Area(m㎡)		1*10		1set
	Conductor Dia.(mm)		2.59
	Insulation Thickness(mm)		0.85
	Outer Dia(mm)		6.10±0.2
	Conductor resistance (25℃) (Ω/km)		5.09
	Weight rated(kg/km)		70.71
	Length(m)		40
Main accessories	PV Connetors		MC4, 4pcs		2sets
