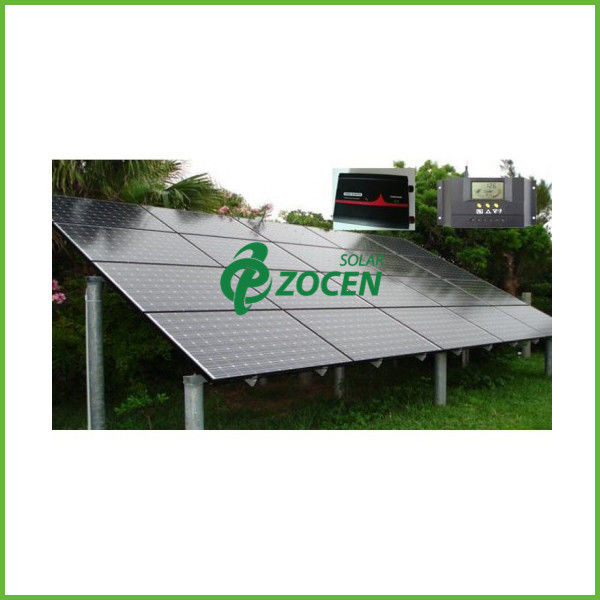

Ground Mounting Off Grid Solar Power Systems

Large Image : Ground Mounting Off Grid Solar Power Systems

Product Details:

Place of Origin:	China
Brand Name:	Zocen
Certification:	CE, ISO9001
Model Number:	ZCOG-1KW

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	1pc/carton
Delivery Time:	10-15 days
Payment Terms:	Ex works
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Highlight:	residential solar power system

Solar System Type	AC Off Grid System	Backup time	3 days
Daily power consumption	3KWH-3.5KWH	System Voltage	48V DC
Inverter	Pure sine wave 1KVA	Solar Panels	1000W
Battery	48V400AH	Controller	DC 48V/20A
Distribution Box	with inverter and controller in	Battery Rack	with all batteries in

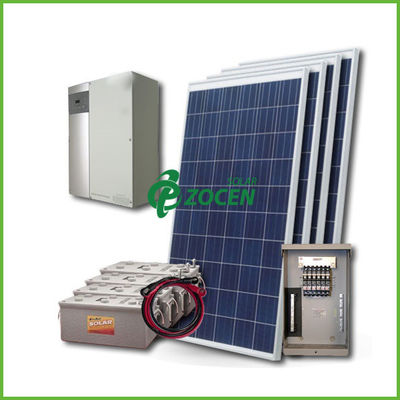

1000Watt Off-Grid Solar System, Satisfied 3-3.5KWH Daily power consumption

1> Quick Details

Place of Origin: China
Brand Name: ZOCEN
Model: ZCOG-1KW

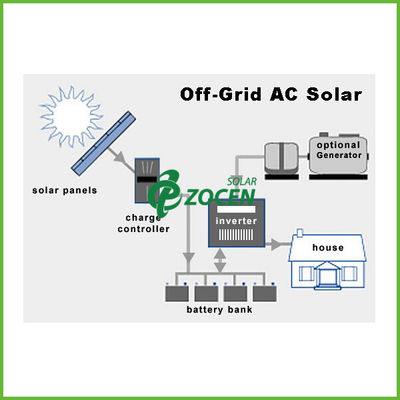

AC/DC solar power system
Solar panel: 69.2V/1000W
Battery: 48V/400AH AGM battery
Controller: 48V/20A
Output: 110~240V AC

2> Description:

No noise or smells, solar operates totally silent
With no fuel consumption, no co2 emission, no air pollution. It's a clean, renewable energy source.
Easy to install and maintenance free.
System can be used for everywhere once there's sunshine. Ideal for remote locations that cannot be tied to the grid
Digital display screen which make output current and voltage visiable, malfunction can be detecated.
Microprocessor intelligent controller functioned with temperature compensation, automatic adjustment of charge and discharge parameters to improve battery life, with over charge, over discharge, overload, short circuit auto protection
110V/220V AC pure sine wave inverter with low distortion of output wave(less than 3%), various of loads available.
More than 20 years lifespan for solar panel and 8 years for the maintenance free lead-acid battery.
Standard structure of solar panel makes installation and transportation easier.

3> Application:

Lamps/TV/Fans/Video/Charger/MP3/MP4/Audio/PSP
Computer/Printer/Copier/Scanner/Screen//Fax
Microwave/fridge freezer/refrigerator/Coffee machine/Washing machine/Baker/Juice machine
Air conditioner/Water pump, etc

Ground Mounting Off Grid Solar Power Systems 0

4> Technical data

Item No		ZCOG-1000W
Capacity		1VA
System voltage		48VDC
Best output power everyday	Solar Radiation(kWh/m²/d):	3000WH
	Solar Radiation(kWh/m²/d): 5	3700WH
	Solar Radiation(kWh/m²/d): 6	4500WH
Inverter	Output wave	Pure sine wave
	Output voltage	AC110/220V
	Output frequency	50/60HZ
	Capacity	1000VA
	Precision of output voltage	±3%
	Precision of output frequency	±0.1%
	False output wave of AC	<3%
	Overload ability	120%, 60 seconds
	Invert efficiency	>85%
Solar Panel	Pmax	1000
	Vmp	69.2V
	Imp	14.7A
	Unit Size(LWH mm)	164099240
	Unit Weight(kg)	19.5
	Quantity	4
Battery	Capacity	48V400AH
	Unit Size(LWH mm)	520268226
	Unit Weight(kg)	60
	Quantity	8
Controller	Rated voltage	DC 48V
	Rated current	20A
	Control mode	PWM
	Protection	Reverse polarity, overload, reverse charge, etc.
Distribution Box		with inverter and controller in
Battery Rack		with all batteries in
Solar Mounting System		Pitch Roof/Flat Roof/Ground Mounting Type
