220V / 380V Double Conversion Online UPS 10kva / 20KVA Online UPS System

Large Image : 220V / 380V Double Conversion Online UPS 10kva / 20KVA Online UPS System

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	View Star Series 10-30Kva

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Cartons & Wooden Pallet
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Type:	Online	Output Power Factor:	0.8
Phase:	3 Phase In / Single Phase Out	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	Digital LCD Display	H.S. Code:	8504402000
Highlight:	online ups power supply

220V / 380V Double Conversion Online UPS 10kva / 20KVA Online UPS System

Model:High Frequency Online UPS View Star Series 10K-30Kva (3ph in / 1ph out)

Key Features

• True double-conversion on line UPS
• DSP technology guarantees high performance
• Output power factor 0.8
• Standard backup UPS and long backup UPS in one integrated unit
• Adjustable battery number from 16 pcs to 20 pcs
• Adjustable charging current via LCD or software
• Wide input voltage range (110-300 VAC)
• Active input power factor correction 0.99
• 50Hz/60Hz frequency converter mode
• 3-stage extendable charging design for optimized battery performance
• Maintenance bypass available
• SNMP/USB/RS-232 communications
• Programmable power management outlets
• Emergency power off function (EPO)
• Generator compatible
• Charger capacity expansion to 12A for long-run models
• Optional N+X parallel redundancy

Technical Specification

VIEW STAR SERIES ONLINE UPS SELECTION GUIDE
MODEL		VS31 10K (L)	VS31 15K (L)	VS31 20K (L)	VS31 30K (L)
PHASE		3 phase in / 1 phase out
CAPACITY		10000 VA / 8000 W	15000 VA/12000 W	20000 VA/16000 W	30000VA/24000W
INPUT
Nominal Voltage		3 x 400 VAC (3Ph+N)
Voltage Range		305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load
Frequency Range		46~54 Hz or 56~64Hz
Power Factor		≧ 0.99 @ 100% load
OUTPUT
Output Voltage		208/220/230/240VAC
AC Voltage Regulation (Batt. Mode)		± 1%
Frequency Range (Synchronized Range)		46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		3:1 (Max)
Harmonic Distortion		Less than 2 % THD (Linear Load) Less than 5 % THD (Non-linear Load
Transfer Time	AC Mode to Batt. Mode	zero
	Inverter to Bypass	zero
Waveform (Batt. Mode)		Pure Sine Wave
EFFICIENCY
AC Mode		89%	89%	89%	90%
Battery Mode		86%	88%	87%	89%
BATTERY
Standard Model	Battery Type	12 V / 9 AH
	Numbers	16 pcs	16 pcs x 2 strings		16 pcs x 3 strings
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current (max.)	1A	2A	2A	2A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers	16pcs(192V)	16pcs(192V)	16pcs(192V)	20pcs(240V) (18-20adjustable)
	Charging Current (max.)	4A	4A	4A	12A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension, D X W X H (mm)	592 X 250 X 576	815 x 250 x 826		8153001000
	Net Weight (kgs)	83	164		234
Long-run Model	Dimension, D X W X H (mm)	592 X 250 X 576	592 X 250 X 576		815 x 250 x 826
	Net Weight (kgs)	28	40		64
ENVIRONMENT
Operation Humidity		0-95 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 58dB @ 1 Meter	Less than 60dB @ 1 Meter		Less than 65dB @ 1 Meter
MANAGEMENT
Smart RS-232		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
USB
Optional SNMP		Power management from SNMP manager and web browser

* Long-run model is only available in 200/208/220/230/240VAC systems.

Competitive Advantages:

1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

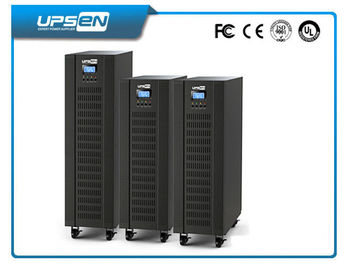

220V / 380V Double Conversion Online UPS 10kva / 20KVA Online UPS System 0

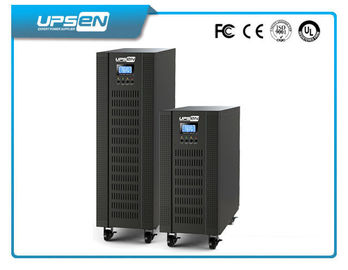

220V / 380V Double Conversion Online UPS 10kva / 20KVA Online UPS System 1
