High Resolution Outdoor Full Color LED Display P10 LED Screen Hire

Large Image : High Resolution Outdoor Full Color LED Display P10 LED Screen Hire

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SKYVIEW
Certification:	3C/GMC/ISO9001/CCPC
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	1-100000usd
Packaging Details:	Wooden Case/ Flight Case
Delivery Time:	7-15 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	>350sqm/month

Contact Now

Detailed Product Description

Product Name:	Outdoo Full Color LED Display	Pixel Pitch:	10 Mm
Size Of Panel:	320x160	Brightness:	4500
Usage:	Advertising	Pixel Density:	10000
Weight:	22.6 KG For Each Cabinet
Highlight:	Full Color Led Signs

High Resolution Outdoor Full Color LED Display P10 LED Screen Hire

Description

1. More wide viewing angle: 110°(Horizontal )/80°(Vertical )
2. High and new Structure design for water-proof,anti-static electricdust-proof, and moisture-proof,
3. High Contrast. The Contrast is above 4000:1, so the looker will have a good visual enjoyment.
4. Gray level 65536 level,so the video will have colours.

specifications

1. Indoor led Display technical parameter

Pixel Density(pixel/㎡)	10000
White Balance Brightness (cd/㎡)	≥4500(adjustable)
Max Power Consumption	360W/cabinet
Average Power Consumption	280W/cabinet
Color Temperature	3200-9300(adjustable)
View Angle	Horizontal 110°；Vertical 110°
Best Viewing Distance(m)	10m—100m
Display Work Method	1/4 scan
Digital Processing	14 bit
Gray Scale	65536 levels per color
Refresh Frequency (Hz)	≥800
Input Signal	Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc
Waterproof	Yes
Working Temperature(ºC)	-20～+45
Humidity(RH)	10% - 80%
Stored Temperature (ºC)	-30～+60
Lifetime (50%Brightness)(Hours)	≥100,000
Input Voltage(VAC)	AC 220(or 110V)
Input Power Frequency(Hertz)	50 to 60
Data Connection	Super CAT6 Cable or Fiber
Operating System	Windows(98/2000/XP/Vista)
Blind Spot Rate	＜0.00001
Control Distance	CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers
Panel Input Format (With Video Processor)	VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV
Earth Leakage Current(mA)	＜2

2. Indoor LED Display Module

Pixel Configuration	SMD3535	Pixel Pitch	10 mm
Module Resolution	32x16	Module Size(W*H)	320mm x 160mm
Weigth Per Module	0.52kg	Max Power Consumption	30 w

3. Indoor LED Display Cabinet

Cabinet Size(W*H)	640mm × 960mm	Module Qty	12 pcs
Cabinet Resolution	64 x 96	Cabinet Area	0.6144㎡
Weight Of One Cabinet	22.6 kg	Cabinet Pixel	10000
Cabinet Flatness	＜0.2/㎡	Cabinet Material	Die Casting Cabinet

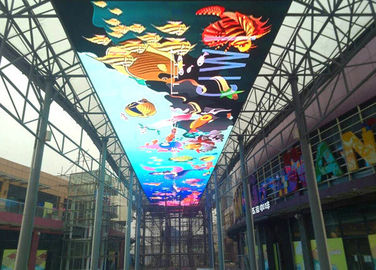

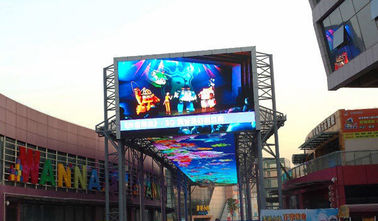

Applications

The Outdoor Fulll Color LED Display Are Very Popular In Outdoor Field. This Type Screen
Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,
highway,Concert,airport etc;

competitive advantage

1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
