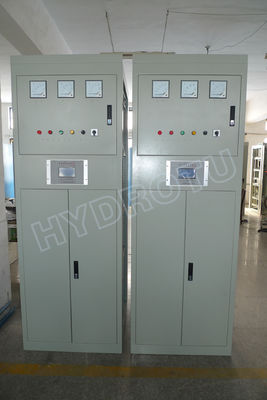

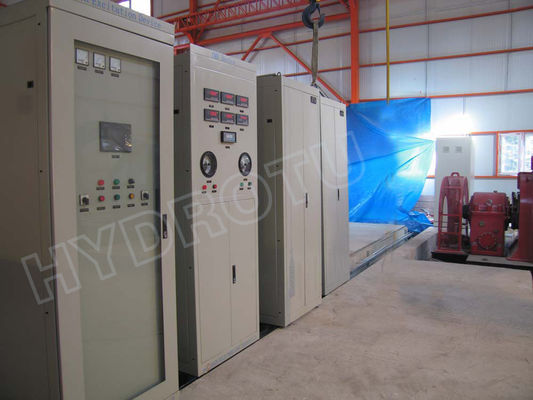

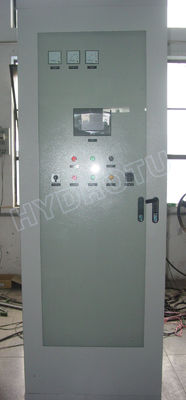

synchronous generator excitation system

Automatic Voltage Regulator Synchronous Generator Excitation System

Descrition:

This excitation system are suitable for hydro turbine  synchronous generator. It is always used for medium and small synchronous generator, output voltage 0.4KV, 6.3KV, 10.5KV etc. The excitation system is designed and produced according to the requirements of GB10585-89.

Regulator is mainly controlled by integrated circuit or microcomputer, the regulation method is automatic voltage regulation(AVR), microcomputer regulator can run with constant voltage, constant current and power factor.

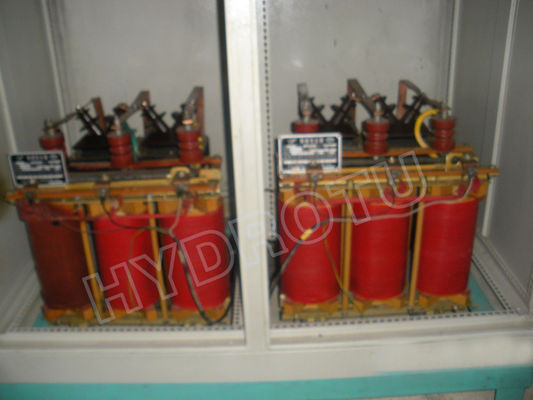

The excitation transformer is commonly dry type transformer within the panel.

The unit side panel commonly include temperature measure, speed measure, brake magnetic valve, pressure meter etc.

Applications:

This excitation system are suitable for medium and small synchronous generator, output voltage 0.4KV, 6.3KV, 10.5KV etc.

Specifications:

1.Generator voltage:  0.4KV/6.3KV/10.5KV.

2.Regulator is mainly controlled by integrated circuit/microcomputer.

3.Regulatin method is AVR.

Static Silicon Control Excitation system for synchronous generator .

Generator voltage:  0.4KV  .6.3KV. 10.5KV

Regulator is mainly controlled by integrated circuit/microcomputer .

Regulation method is AVR. Model of microcomputer regulator can run with constant voltage, constant current and constant power factor.

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
