Features
(1) Automatic voltage regulation
(2) Protection against brownout & over voltage.
(3) The AC single phase voltage regulator has a wide input voltage range
(4) Short circuit & overload protection
(5) Selectable delay time
(6) LCD/LED/Analog display available for your choose.

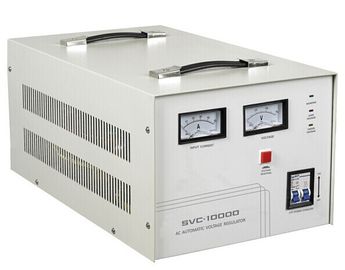

Parameters of SVC Single Phase Automatic Voltage Regulator (AVR)
Specification of AVR |
SVC-7500VA |
SVC-10KVA |
SVC-10KVA |
SVC-15KVA |
SVC-20KVA |
SVC-30KVA |
|
Input |
Phase |
Single phase |
|||||
Voltage |
AC 150V-250V |
||||||
Frequency |
50Hz/60Hz |
||||||
Output |
Voltage |
220V±3% |
|||||
Capacity |
6000W |
8KW |
8KW |
12KW |
16KW |
24KW |
|
Frequency |
50Hz/60Hz |
||||||
Protection |
Low voltage |
AC 184V±4V |
|||||
Over voltage |
AC 246V±4V |
||||||
Time Delay |
3-7sec/3-7min Selectable |
||||||
Overload/short circuit |
YES |
||||||
Packaging |
Pcs per Carton |
1 |
|||||
Shipping Wt.(Kg) |
27.65 |
30.5 |
35 |
51.3 |
61.15 |
80.2 |
|
Packing dimensions(mm) |
610*360*305 |
370*330*580 |
395*415*705 |
395*430*815 |
530*440*955 |
||
Efficiency |
AC-AC |
>95% |
|||||
Acoustic |
Noise level |
≤50dB |
|||||
Environment |
Temperature |
-5℃ to 40℃ |
|||||
Humidity |
20% to 90% |
||||||
QTY (pcs) |
20FT |
420 |
420 |
400 |
245 |
210 |
125 |
