220v Communication 48V DC Power Supply Input Frequency Range

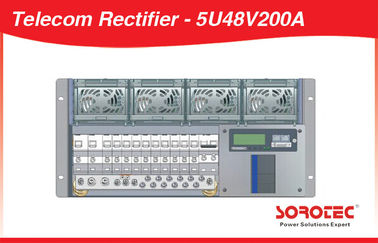

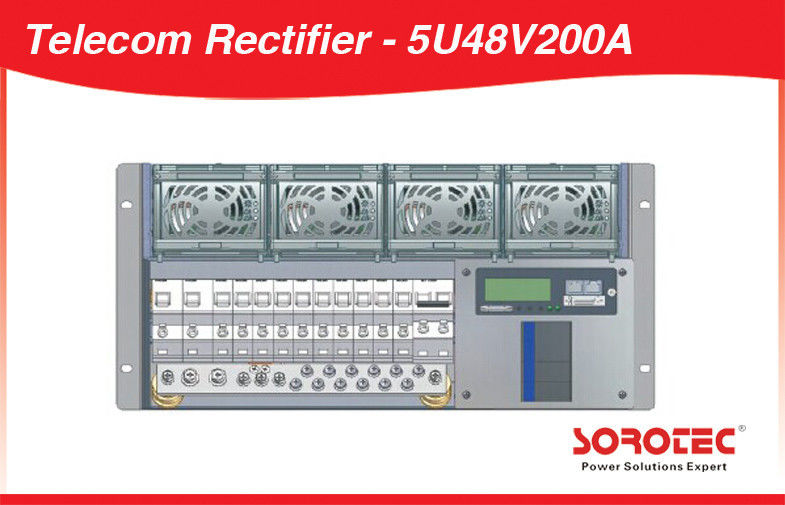

Large Image : 220v Communication 48V DC Power Supply Input Frequency Range

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	Embeded System - 5U48V200A

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Rated Voltage:	220V	AC Intput Voltage Range:	90-290V
AC Frequency Range:	43-67HZ	Max. Current:	18.6A
Highlight:	dc 48v power supply

220v Communication 48V DC Power Supply Input Frequency Range

AC Input:
Rated input voltage :220V

AC input Voltage range:90-290V

AC input Frequency range;43-67HZ

Power factor :≥0.99

Efficiency : >92%

DC output :
Rated voltage:48V

Voltage range: 42-58V

Rated Current :200A

load shunt: 4 road load

battery shunt:2 road battery

battery LVD:100A×2

Mode of connection :Former connection wire

Rectifier Module :SR4850

Monitoring Module :STM-1

Safety characteristics:

Input ----output 3000vac/10mA//1min No arcing, no breakdown

Input---- chassis 2500Vac/10mA//1min No arcing, no breakdown

Input---- chassis 500Vac/10mA//1min No arcing, no breakdown

Environment:
Operating temperature :-40°c - +70°c
Humidity : ≤95% non-condensing

Mechanical characteristic :
Dimensions(W.H.D): 480*270*300(mm)
Weight(Kg): 20kg (include rectifier module)
