High Level Power Stability Ploy Phase Stationary Power Systems With 2nd – 21st Free Programmable Harmonic Source

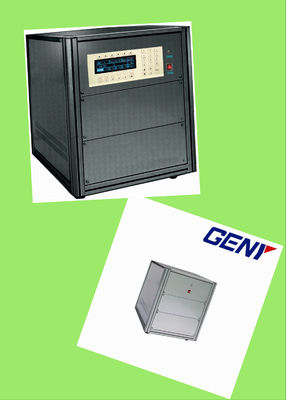

Large Image : High Level Power Stability Ploy Phase Stationary Power Systems With 2nd – 21st Free Programmable Harmonic Source

Product Details:

Place of Origin:	China
Brand Name:	GENY
Certification:	ISO 9001
Model Number:	YCS-103 series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plywood case
Delivery Time:	30 days
Supply Ability:	45 sets/month

Contact Now

Detailed Product Description

Phase:	Single	Power:	Electronic
Voltage:	24V – 300V	Stability:	Better Than 0.005%/h

High Stability 0.005% / H Stationary Power , 2nd – 21st Free Programmable Source

Description:

High accuracy and high stability source output
With RS232 interface for automatic operation
With keyboard for manual operation (optional).
2nd – 21st harmonic, output amplitude and degree can be programmed.
Aluminum alloy materials, light and strong, prevent corrosion.
With the protect function of overload, short voltage circuit and open current circuit.
PC control software suit, easy operation and support secondary software development

Technical Specifications:

	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Voltage
Test voltage output (Phase-Neutral)	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Current
Test current output	1mA – 10A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

Voltage Supply	220V±10% or 50/60Hz±2Hz			3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 90%

Applications:

Nation-level utility companies
Governmental bureaus of metrology
Power energy meter manufacturers

Primary Competitive Advantages:

High quality product
High power output (max. voltage power: 1000VA, current power: 1500VA)
Extremely high power stability
Distortion factor less than 0.3% for linear resistance load

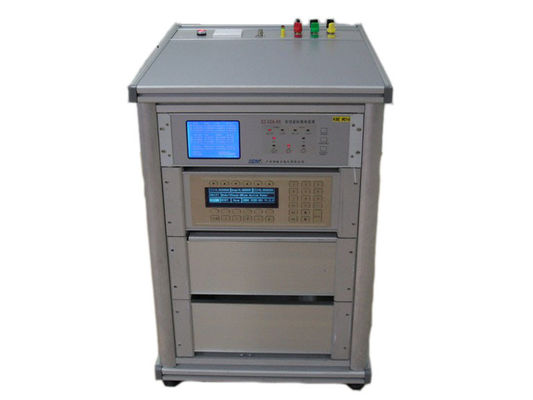

High Level Power Stability Ploy Phase Stationary Power Systems With 2nd – 21st Free Programmable Harmonic Source 0
