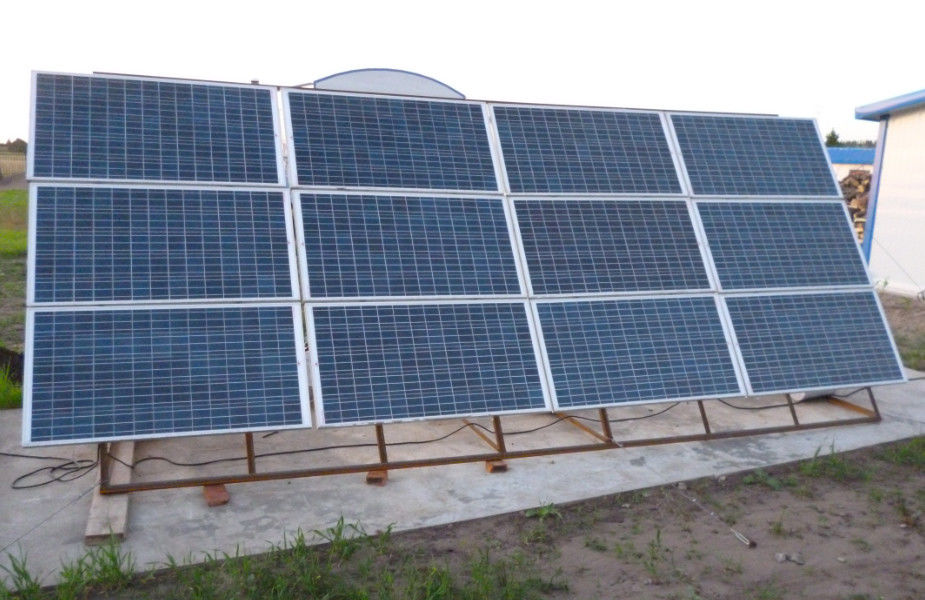

2KW Off Grid Residential Solar Power System With 156mm Polysilicon Cells

Large Image : 2KW Off Grid Residential Solar Power System With 156mm Polysilicon Cells

Product Details:

Place of Origin:	China
Brand Name:	CESC
Certification:	CE/CSA/TUV
Model Number:	CESC-KGP2000

Payment & Shipping Terms:

Minimum Order Quantity:	50 Units
Price:	negotiation
Packaging Details:	Packaging in carton or wooden case
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or LC at sight
Supply Ability:	3,0000pcs per month

Contact Now

Detailed Product Description

Product Name:	2KW Off-grid Home Solar Power System	Application:	Solar Generator
Quantity Of Panel:	8 Pcs Or Optional	Quantity Of Inverter:	1
Power Of Inverter:	2KW	Standard:	CE/CSA/TUV
Type:	Home Solar Power System
Highlight:	off the grid solar power systems

Intelligent Power Generator 2KW Off-grid home Solar Power System

Description:

off-grid 2kw mini home solar power system for home
Environmental protection: solar product does not produc

off-grid 2kw mini home solar power system for home

Portable Solar Power System includes Solar cell modules, solar inverter, solar battery and solar controller. It can be applied to the villa, household, outdoor camping, tourist resorts, prairie areas, remote mountain village, no power suplly areas, farms, villages, farm, hills, island, highway and any regions to generate electricity. Use very widely. It can charge for Cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in 110V/220V 50Hz/60Hz.

Specifications

ITEM	SPECIFICATION:
SOLAR PANEL	TYPE NO:		P7Y-300
	QTY:		8pcs
	CONNECT ARRAY:		2pcs in series, 4 series in parallel
	SPEC:	CELLS:	156mm polysilicon cells*72
		Pm(Wp):	300W
		Vm(V):	36V
		Im(A):	8.33A
		Voc(V):	44.8V
		Isc(A):	8.73A
		size(MM):	195699245MM
		N.W(KG):	22.5KG
SOLAR BRACKET	Material:		Galvanized steel
	SPEC:		2*4,suit for solar panels array
	Install place:		ground or flat roof
PV COMBINER BOX	TYPE NO:		PVX4-1
	SPEC:	channels:	4in, 1out
		Material:	plastic
		Defence function:	yes
		Communication:	no
POWER KIT	TYPE NO:		CESC-KGP2000
	CONTROLLER:	Controller Mode:	PWM
		Solar panel input range:	DC60V-DC100V
		Rated voltage of solar input:	DC72V
		Floating charge voltage:	58V
		Charging voltage:	48V DC
		Charging current:	50A
		Efficiency:	96% (Max)
	INVERTER:	Rated Output Power:	2KW
		Peak power:	200% * 1s
		Working Efficiency:	>83%
		Output Wave:	Pure Sine Wave(THD≤5%)
		Output vltage:	220V50HZ/110V60HZ
		Grid power input:	220V50HZ/110V60HZ
		Switching Time:	≤4 ms (between grid and inverter)
		Protection Functions:	DC over-voltage protection/over-voltage self-revcovery
			DC low-voltage protection/low-voltage self-revcovery
			Overheat/short-current/overload protection
		Features:	AVR Functions:AC145V-275V(input), AC198V-242V (output)

			batteries can be charged by Grid and automatic supply power when Grid cut off

	Size:		490mm×235mm×485mm (With wheels)
	N.W:		27.4kg
BATTERY	Battery Type:		Maintain-free Lead-acid battery
	Capaticty:		12V/100AH*4 (Max.:4800WH)
	connect array:		4pcs in series
	system voltage:		48V DC
	N.W:		30kg
BATTERY BRACKET	SPEC:	Material:	steel
		structure:	framework
OTHERS ACCESSORIES	PV CABLE:	SPEC&QTY:	4mm sq with MC4 connectors: 15m
			10mm sq with MC4 connectors: 30m
	POWER CABLE:	SPEC&QTY:	35mm sq, 3m
