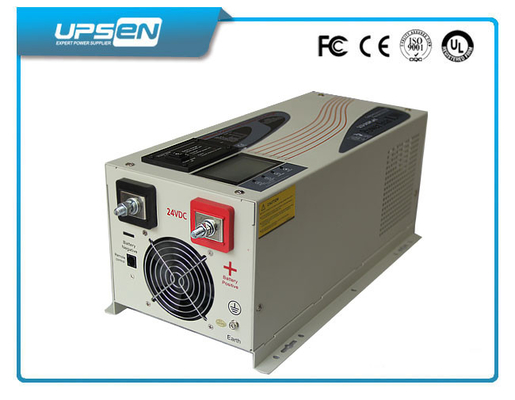

Solar Off Grid Power Inverter Convert DC Power to AC Power 1kw - 12Kw
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Inverter Quick Overview
1: Solar Power Inverter with 12VDC 24VDC 48VDC to 110Vac 120Vac or 220Vac 230Vac 240Vac
2: Inverter with Bypass Function
3: Inverter with overload over charging and low battery protection
4: Inverter Automatically transfer between battery and line modes
1- 6 Kw Key Features
Pure sine wave output (THD<3%), available for sensitive loads
High efficiency up to 95% under line mode, and 88% for Battery Mode
Fast and powerful charger with 35A and 70A
4-step progressive charging, 7 battery type selector
Accept generator’s energy output
Automatically transfer between battery and line modes
Microprocessor control guarantees high reliability
Bypass without battery connected
Remote control function
Protection against:Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector)
Blackouts
8kw - 12Kw Key Features:
On inverter
● High overload ability
● Low battery voltage trip selectable, extracting max power from various batteries with different protections
● Low quiescent current, selectable sensing cycle to reduce power consumption
On battery charge
● 3-step intelligent battery charging
● 8 preset battery type selector plus de-sulphation for totally flat batteries
● Powerful charge rate up to 100Amp ,selectable charging current
● PFC(Power Factor Correction) for charger, less power consumption than conventional units
On Transfer
● Delay before transfer, extra protections for loads under generator mode
● Input AC voltage range selectable, for different kinds of loads
● 8 ms typical transfer time, guarantees power continuity
● 30A/40A through current ability
● Output voltage regulation optional
On remote control & other features
● Ability to switch the unit on/off
● Ability to select/deselect power saver mode
● 17 alarms/warnings, informative for easier operation and trouble-shooting
● LCD status display available
● RS232 communication port optional
Application

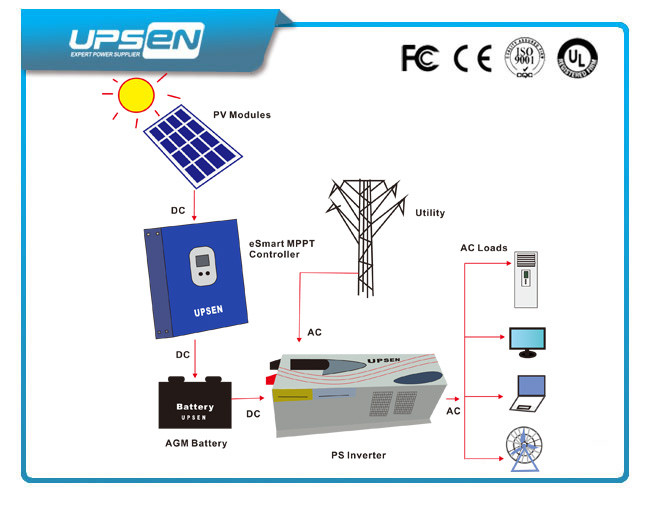

UPSEN Power Srar Inverter can be used for various home appliances, office equipment, solar power system, and other equipments which use single phase power.
|
Power Star Series
|
|
Model No.
|
PS1000
|
PS2000
|
PS3000
|
PS4000
|
PS5000
|
PS6000
|
|
Nominal Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
AC Input
|
|
Waveform
|
Pure Sine Wave
|
|
Voltage
|
120VAC/230VAC
|
|
Acceptable Voltage
|
194-243VAC164-243VAC(wide mode)
|
|
Line Low Transfer
|
85V±4%/184(154 wide mode±4%)
|
|
Line Low Return
|
95V±4%/194(164 wide mode±4%)
|
|
Line high Transfer
|
135V±4%/253±4%
|
|
Line high Return
|
127V±4%/243±4%
|
|
Frequency
|
50Hz or 60Hz (Auto sensing)
|
|
Line Low Transfer
|
47Hz for 50Hz, 57Hz for 60Hz
|
|
Line high Transfer
|
55Hz for 50Hz, 65Hz for 60Hz
|
|
AC Output
|
|
Waveform
|
Pure Sine Wave(bypass mode sync to input)
|
|
Voltage
|
120/220/230/240VAC(bypass mode sync to input)
|
|
Voltage Regulation
|
±10%rms(bypass mode sync to input)
|
|
Frequency
|
50Hz±0.3Hz(bypass mode sync to input)
|
|
Peak Power
|
3 times of rating power
|
|
Short Circuit Protection
|
Yes,shutdown after 10ms
|
|
Power Factor
|
0.9-1.0
|
|
DC Input
|
|
Battery Voltage
|
12V/24V
|
12V/24V/48V
|
24V/48V
|
|
Minimum Start Voltage
|
10V for 12V,20V for 24V,40V for 48V
|
|
Low Battery Alarm
|
10.5V for 12V,21V for 24V,42V for 48V
|
|
Low Battery Transfer
|
10V for 12V,20V for 24V,40V for 48V
|
|
High Voltage Alarm
|
16V for 12V,32V for 24V,64V for 48V
|
|
Max Charging Current
|
35A/70A
|
|
Over Charge Voltage
|
15.7V for 12V,31.4V for 24V,62.8V for 48V
|
|
Transfer Efficiency
|
|
Line Mode
|
＞95%
|
|
Battery Mode
|
＞88%
|
|
power saver
|
Available when the load is less than 25 Watts
|
|
Indicators
|
|
7-LED Display
|
From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
|
|
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged
|
|
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded
|
|
shutdown (red lighting) ,LED7 Saving Mode (green lighting)
|
|
3-LED Display
|
Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
|
|
Switch selector
|
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off.
|
|
Audible Alarm
|
Sounding when the heatsink's tem is over 105℃ and shutdown after 30 seconds.
|
|
Protections
|
low battery,over charging,over temp,over load
|
|
Communications
|
RS-232/USB(custom-made)
|
|
Enviromental
|
|
Operating Environment
|
0-40℃,0-90%RH(non-condensing)
|
|
Audible Noise
|
＜60dB
|
|
Physical
|
|
|
|
|
|
|
|
Net Weight(KG)
|
18
|
20
|
22
|
35
|
38
|
40
|
|
Dimension L*W*H(mm)
|
442*218*179mm
|
598*218*179mm
|
| Power Star Series |
| Model No. |
PS8K |
PS10K |
PS12K |
| Nominal Power |
8KW |
10KW |
12KW |
| AC Input |
| Phase & Waveform |
Single Phase & Pure Sine Wave |
| Voltage |
220/230/240VAC |
| Acceptable Voltage |
154-273VAC |
| Line Low Transfer |
154V |
| Line Low Return |
164V |
| Line high Transfer |
273V |
| Line high Return |
263V |
| Frequency |
50Hz or 60Hz (Auto sensing) |
| Line Low Transfer |
40Hz |
| Line high Transfer |
80Hz |
| AC Output |
| Phase & Waveform |
Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage |
220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation |
±10%rms(bypass mode sync to input) |
| Frequency |
50Hz or 60Hz (Auto sensing) |
| Crest Power |
3 times of rating power |
| Short Circuit Protection |
Yes,shutdown |
| Power Factor |
0.9-1.0 |
| DC Input |
| Battery Voltage |
48V |
| Minimum Start Voltage |
40V |
| Low Battery Alarm |
44V |
| Low Battery Transfer |
40V |
| High Voltage Alarm |
64V |
| Max Charging Current |
75A |
85A |
100A |
| Over Charge Voltage |
62.8V |
| Transfer Efficiency |
| Line Mode |
＞95% |
| Battery Mode |
＞88% |
| power saver |
Available when the load is less than 75 Watts |
| Indicators |
| 4-LED Display |
Charge, Line, Inverter, Fault |
| LCD Display |
Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector |
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
| Audible Alarm |
Sounding when the heatsink's tem is over 105℃ and shutdown after 30 seconds. |
| Protections |
low battery,over charging,over temp,over load |
| Communications |
RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment |
0-40℃,0-90%RH(non-condensing) |
| Audible Noise |
＜60dB |
| Physical |
| Net Weight(KG) |
56 |
64 |
68 |
| Dimension L*W*H(mm) |
549*450*201mm |
584*450*201mm |
| *Specification is subject to change without prior notice. |
* Specification is subject to change without prior notice.
