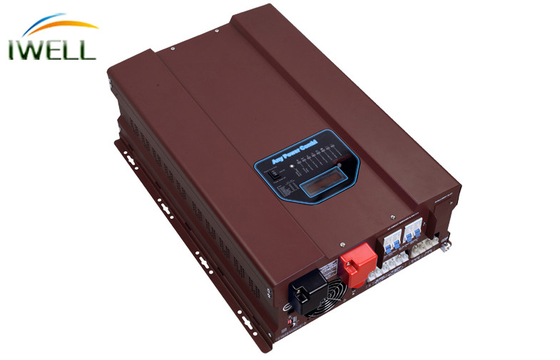

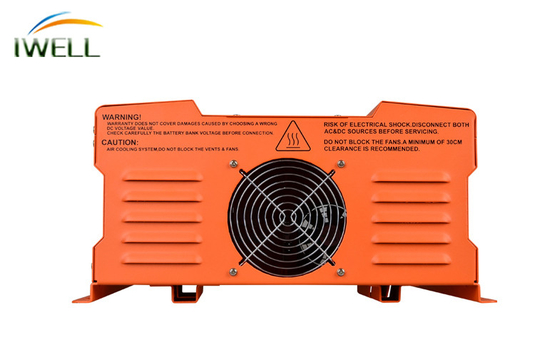

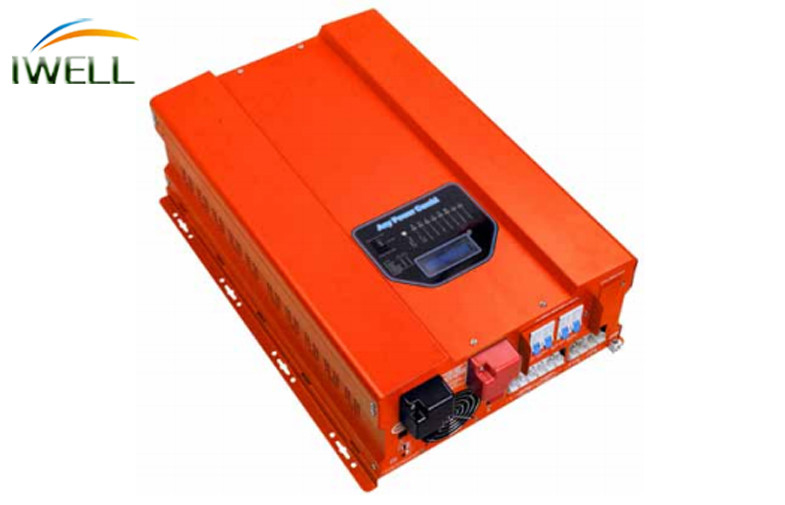

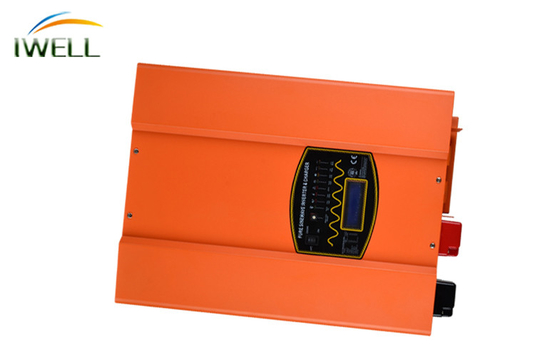

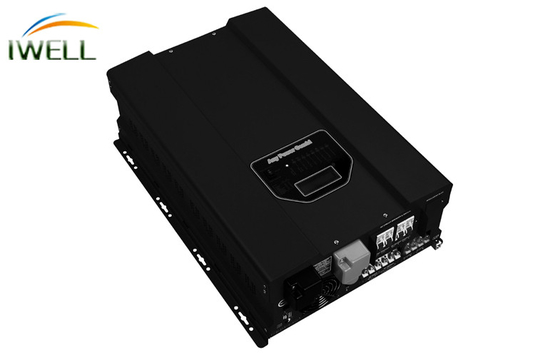

Pure Sine Wave 230VAC 48VDC 12KW Hybrid Power Inverter with Battery Priority
Specifications:
|
Model
|
2.0KW
|
3.0KW
|
4.0KW
|
5.0KW
|
6.0KW
|
8.0KW
|
10.0KW
|
12.0KW
|
|
Inverter
Output
|
Continuous Output Power
|
2.0KW
|
3.0KW
|
4.0KW
|
5.0KW
|
6.0KW
|
8.0KW
|
10.0KW
|
12.0KW
|
|
Surge Rating(20ms)
|
6.0KW
|
9.0KW
|
12.0KW
|
15.0KW
|
18.0KW
|
24.0KW
|
30.0KW
|
36.0KW
|
|
Output Waveform
|
Pure Sine wave/Same as input(Bypass Mode)
|
|
Nominal Efficiency
|
>88%(Peak)
|
|
Line Mode Efficiency
|
>95%
|
|
Power Factor
|
0.9-1.0
|
|
Nominal Output Voltage rms
|
100-110-120Vac / 220-230-240Vac
|
|
Output Voltage Regulation
|
±10% RMS
|
|
Output Frequency
|
50Hz ± 0.3Hz/60Hz ± 0.3Hz
|
|
Short Circuit Protection
|
Yes( 1sec after fault )
|
|
Typical transfer Time
|
10ms(Max)
|
|
THD
|
< 10%
|
|
DC Input
|
Nominal Input Voltage
|
12.0Vdc
|
|
( *2 for 24Vdc, *4 for 48Vdc)
|
|
Minimum Start Voltage
|
10.0Vdc
|
|
DC Input
|
Low Battery Alarm
|
10.5Vdc / 11.0Vdc
|
|
Low Battery Trip
|
10.0Vdc / 10.5Vdc
|
|
High Voltage Alarm
|
16.0Vdc
|
|
Low Battery voltage recover
|
15.5Vdc
|
|
Idle Consumption-Search Mode
|
< 25 W when Power Saver On
|
|
Charger
|
Output Voltage
|
Depends on battery type
|
|
Charger Breaker Rating
|
20A
|
20A
|
20A
|
30A
|
30A
|
40A
|
40A
|
40A
|
|
Max Charge Power Rate
|
1/3 Rating Power
|
|
Battery Initial Voltage for Start Up
|
10-15.7V for 12V( *2 for 24V, *4 for 48V)
|
|
Over Charge Protection Shutdown
|
15.7V for 12V (*2 for 24V, *4 for 48V)
|
|
Remote Control
|
Yes(Optional)
|
|
Bypass & Protection
|
Input Voltage Waveform
|
Sine wave (Grid or Generator)
|
|
Nominal Voltage
|
110Vac
|
220Vac
|
230Vac
|
230Vac
|
|
Max Input AC Voltage
|
150VAC For 120Vac LV Mode；300VAC For 230Vac HV Mode；
|
|
Nominal Input Frequency
|
50Hz or 60Hz (Auto detect)
|
|
Low Freq Trip
|
47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
|
|
High Freq Trip
|
55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
|
|
Overload protection(SMPS load)
|
Circuit breaker
|
|
Output Short circuit protection
|
Circuit breaker
|
|
Bypass breaker rating
|
10A
|
40A
|
40A
|
40A
|
50A
|
63A
|
63A
|
|
Transfer switch rating
|
30amp for UL & TUV
|
40amp for UL
|
80amp for UL
|
|
Bypass without battery connected
|
Yes (Optional)
|
|
Max bypass current
|
30amp
|
40amp
|
80amp
|
|
Solar
Charger
|
Rated Voltage
|
12Vdc / 24Vdc / 48Vdc
|
|
(Optional)
|
Solar Input Voltage Range
|
15-30Vdc / 30-55Vdc / 55-100Vdc
|
|
|
Rated Charge Current
|
40 ~ 60A
|
|
|
Rated Output Current
|
15A
|
|
|
Self Consumption
|
< 10mA
|
|
|
Bulk Charge
|
14.5V(default)
|
( *2 for 24Vdc, *4 for 48Vdc)
|
|
|
Floating Charge
|
13.5V(default)
|
|
|
Equalization Charge
|
14.0V(default)
|
|
|
Over Charge Disconnection
|
14.8V
|
|
|
Over Charge Recovery
|
13.6V
|
|
|
Over Discharge Disconnection
|
10.8 V(default)
|
|
|
Over Discharge Reconnection
|
12.3V
|
|
|
Temperature Compensation
|
－13.2mV/℃
|
|
|
Ambient Temperature
|
0 ~ 40℃(Full load) 40 ~ 60℃(Derating)
|
|
Mechanical Specific-ations
|
Mounting
|
Wall Mount
|
|
Inverter Dimensions(L*W*H)
|
388*415*200mm
|
488*415*200mm
|
588*415*200mm
|
|
Inverter Weight(Solar Chg)KG
|
23+2.5
|
38+2.5
|
48+2.5
|
49+2.5
|
60+2.5
|
66+2.5
|
70+2.5
|
|
Shipping Dimensions(L*W*H)
|
550*520*310mm
|
650*520*310mm
|
750*520*310mm
|
|
Shipping Weigh (Solar Chg)KG
|
25+2.5
|
40+2.5
|
50+2.5
|
51+2.5
|
62+2.5
|
68+2.5
|
72+2.5
|
|
Display
|
Status LEDs / Status LEDs+LCD
|
|
Standard Warranty
|
1 Year (Optional)
|
48VDC 12KW Hybrid Power Inverter Description:
1. Smart Remote Control (RMT)
2. Battery Temperature Sensor (BTS)
3. Automatic Generator Starting (AGS)
4. Support Solar Panel with MPPT Function
5. Designed to Operate under Harsh Environment
6. DC Start & Automatic Self-Diagnostic Function
7. Compatible with Both Linear & Non-Linear Load
8. Easy to Install & Easy to Operate & Easy to Solve
9. Low DC Voltage Supports Home & Office Appliances
10. Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
11. High Efficiency Design & “Power Saving Mode” to Conserve Energy
12. Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
13. 13 Vdc Battery Recover Point, Dedicated for Renewable Energy Systems
14. 8 pre Set Battery Type Selector plus De-sulphation for Totally Flat Batteries
15. 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
16. 8 ms Typical Transfer Time Between Utility & Battery, Guarantees Power Continuity
17 15s Delay Before Transfer when AC Resumes, Protection for Load when Used with Generator
18. This series Inverter is equipped with a powerful charger of up to 120Amp (depending on Model). The overload capacity is 300% of continuous output for up to 20seconds to reliably support tools and equipment longer
10KW Hybrid Power Inverter Applications:
1. Power tools–circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressors.
2. Office equipment – computers, printers, monitors, facsimile machines, scanners.
3. Household items – vacuum cleaners, fans, fluorescent and incandescent lights, shavers, sewing machines.
4. Kitchen appliances – coffee makers, blenders, ice markers, toasters
5. Industrial equipment – metal halide lamp, high – pressure sodium lamp.
6. Home entertainment electronics – television, VCRs, video games, stereos, musical instruments, satellite equipment.
48VDC 12KW Hybrid Power Inverter Competitive Advantage:
1. Have different overload capacities, making it ideal to handle demanding loads.
1) For 110%<Load<125%(±10%), no audible alarm in 14 minutes, beeps 0.5s every 1s in the 15th minute, and Fault(Turn off) after the 15th minute.
2) For 125%<Load<150%(±10%), beeps 0.5s every 1s and Fault(Turn off) after the 1 minute.
3) For 300%≧Load>150%(±10%), beeps 0.5s every 1s and Fault(Turn off) after 20s.
2. Can be easily customized to Battery priority via a DIP switch, this helps to extract maximum power from battery in renewable energy systems.
3. Suitable for Renewable energy system,Utility, RV, Marin and Emergency appliances.
4. Can be customized with Auto Gen Start and BTS function according to your requirements.
48VDC 12KW Hybrid Power Inverter
