Product Details:
Payment & Shipping Terms:
|
| Name: | AVR | Model: | MX341 |
|---|---|---|---|
| Color: | Black | Brand Name: | Stamford |
| Weight: | 2kg | Size: | 16cmX14cmX4cm |
| High Light: | automatic ac voltage regulator,avr automatic voltage regulators |
||
Brushless Stamford Automatic Voltage Regulator AVR MX341 Two Phase
*generator automatic voltage regulator newage stamford avr mx341
*One year warranty
*In stock
1.AVR MX341
2.Stability selection & adjustment
3.Under frequency roll off adjustment
4.two phase sensed brushless avr
Stamford Automatic Voltage Regulator MX341
used for brushless generator sets
ISO9001 Quality System CertifiCAT-parts-partsion
MX341 Automatic Voltage Regulator, stamford avr
avr for stamford generator,Be applicable for separated excited alternator, brushless generator with the frequency of 50H
| Sensing Input | Voltage | 190-264V ac max, 1 phase, 2 wire | |
| Frequency | 50-60 Hz nominal | ||
| Power Input(PMG | Voltage | 140-220V ac max, 3 phase, 3 wire | |
| Current | 3A/phase | ||
| Frequency | 100-120 Hz nominal | ||
| Output | Voltage | Max 120V dc | |
| Current | Continuous 2.7 A Intermittent 6A for 10 secs |
||
| Resistance | 15 ohms minimum | ||
| Regulation | +/- 1% | ||
| Thermal Drift | 0.02% per Deg. C change In AVR ambient |
0.03% per Deg. C change In AVR ambient |
|
| Soft Staret Ramp Time | 3 seconds | ||
| Typical system response | AVR response | 10ms | |
| Filed current to 90% | 80 ms | ||
| Machine Volts to 97% | 300ms | ||
| External voltage adjustment | +/-10% with 1k ohm 1 watt trimmer | ||
| Under frequency protection | Set point | 95% Hz | |
| Slope | 170% down to 30 Hz | ||
| Unit power dissipation | 12 watts maximum | ||
| Analogue Input | Maximum input | +/- 5 Vdc | |
| Sensitivity | 1v for 5% Generator Volts (adjustable) | ||
| Input resistance | 1k ohm | ||
| Quadrature Droop Input | 10 ohms burden | ||
| Max. sensitivity: 0.22 A for 5% droop 0PF |
Max. sensitivity: 0.07 A for 5% droop 0PF |
||
| Max. input: 0.33A | |||
| Environmental | Vibration | 20-100 Hz,50mm/se | |
| 100Hz – 2kHz, 3.3g | |||
| Operating temperature | -40 to +70 Deg. C | ||
| Relative Humidity 0-70 Deg. C |
95% | ||
| Storage temperature | -55 to +80 Deg. C | ||

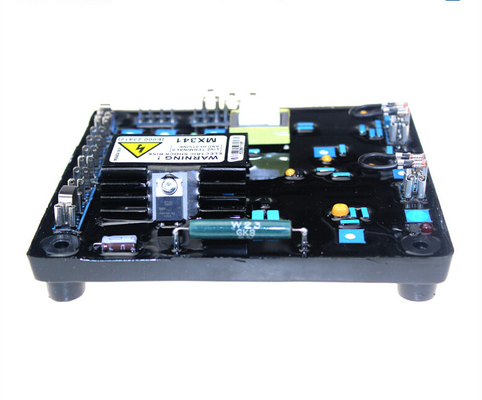

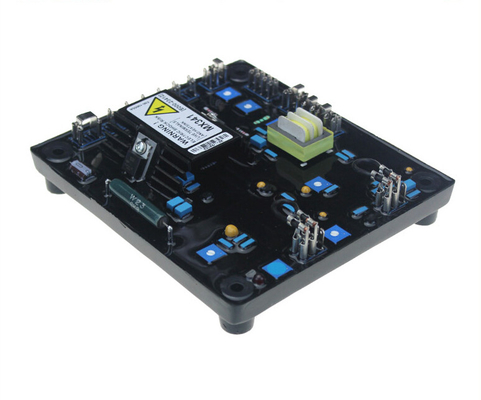

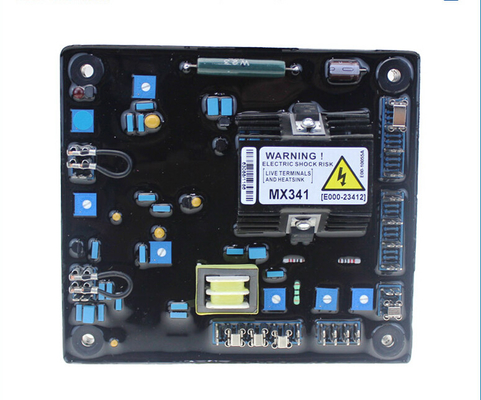

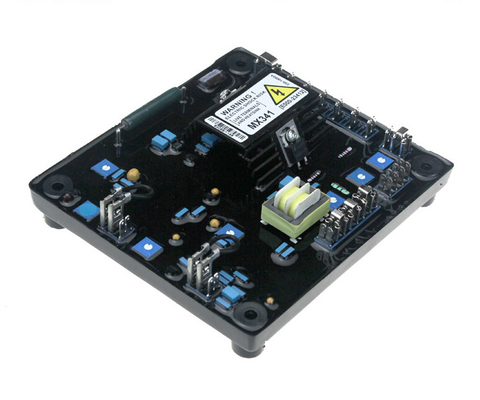

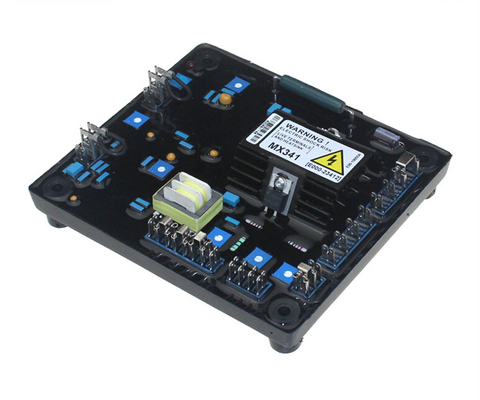

The pictures show as below
(Stamford Alternator AVR MX341)
Guarantee
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7. We do not repair or replace item with an expired warranty.
8. All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
