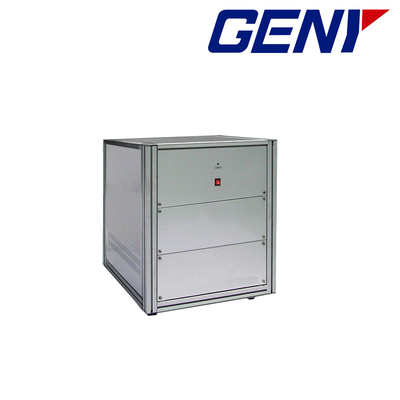

Harmonic Single Phase Supply Stationary Power Systems With Keyboard And Overload Protection

All Products

High Frequency Online UPS (167)

Rack Mount Online UPS (102)

Low Frequency Online UPS (96)

3 Phase UPS Systems (114)

CCTV Power Supplies (61)

Solar Power Inverter (116)

Automatic Voltage Regulator (AVR) (110)

48V DC Power Supply (68)

208Vac Online UPS (98)

Off Grid Solar Power Systems (141)

110V UPS (79)

DC AC Inverter (73)

Double Glass Solar Panel (84)

Large Scale Photovoltaic Power Plants (35)

Solar Panel Street Lights (121)

Best Products

24V 10A Commercial off grid solar power system

Certification

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

This is a fantastic sourcing platform, considerate service and good quality product.

—— philip

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Tim

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Test Object:	1P2W Active And Reactive	Phase Output Range:	0 -- 360°
Size:	600mm X 650mm X 650mm	Stability:	Better Than 0.005%/h
Current Output:	1mA~120A	Voltage Output:	24V~300V
High Light:	Stationary Power , Power Source

High stability and high accuracy power source output
With RS232 interface for automatic operation

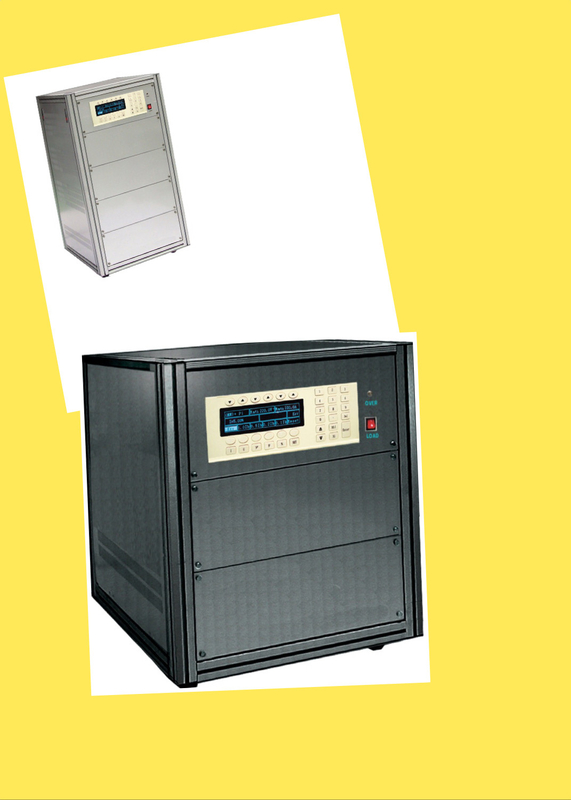

With keyboard for manual operation (optional).
2nd – 21st harmonic with programmable output amplitude and degree
Aluminum alloy materials, light and strong, prevent corrosion.
With the protect function of overload, short voltage circuit and open current circuit.
PC control software suit, easy for operation and support secondary software development

	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Voltage
Test voltage output (Phase-Neutral)	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Current
Test current output	1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

Voltage Supply	220V±10% or 50/60Hz±2Hz			3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 90%
