Product Details:
Payment & Shipping Terms:
|
| Product Name: | Solar Power System On-Grid Solar Inverter | Wave Form: | Pure Sine Wave |
|---|---|---|---|
| Type: | On-grid | Output Voltage: | 220V Or 230V |
| MPPT Charge: | Yes | DC AC Adjustable: | Yes |
| Battery Voltage: | 24VDC | ||
| High Light: | pure sine wave inverter,portable power inverter |
||

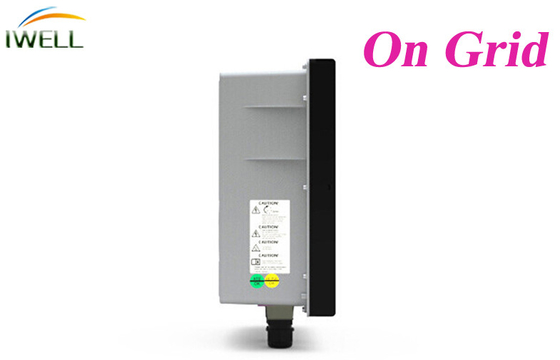

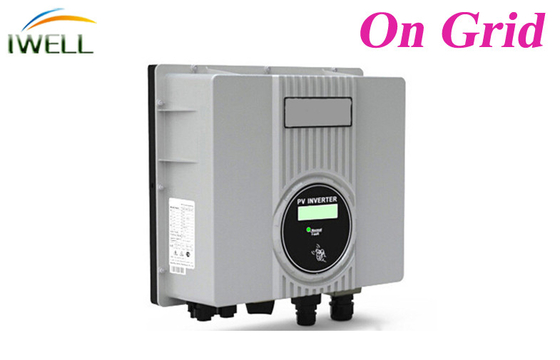

PTS Series 1000W Solar Power System On-Grid Solar Inverter with 230V Input
Solar Power System On-Grid Solar Inverter Description:
1. High performance string inverters
2. Wide PV input voltage range
3. Rapid MPPT tracking technology
4, Superioor PV energy harvest
5. Transformeriess design with higher operation efficiency
6. Excellent natural thermal design
7. High overload capability under most ambient conditions
8. Easy and affordable to install
9. Lightweight and compact size,Includes a lightweight portable bracket simplifying installation
10. Firm IP65 inverter enclosure allows outdoor application
11. Full data display and communications
12. Customization LCD display all the inverter operation message
13. Bright LED indicators imply system status at a glance PC xoftware for remote monitoring and system troubleshooting
14. High speed RS232,RS485 communications port.
15. First SD card to update the inverter firmware technology and storage operating data technology
Specifications:
|
Model Specification |
PTS3000 |
PTS2500 |
PTS-2000 |
PTS1600 |
PTS1000 |
|
Input data |
|
||||
|
Max. DC power |
3200W |
2800W |
2300W |
1900W |
1300W |
|
Max. DC voltage |
500V |
500V |
500V |
500V |
500V |
|
Start voltage |
100V |
100V |
100V |
100V |
70V |
|
DC nominal voltage |
360V |
360V |
360V |
360V |
360V |
|
PV voltage range |
100V-500V |
100V-500V |
100V-500V |
100V-500V |
70V-500V |
|
MPP voltage range |
120V-450V |
120V-450V |
120V-450V |
120V-450V |
100V-450V |
|
Max. input current of tracker |
15A |
12A |
12A |
10A |
10A |
|
Number of MPP trackers/strings per MPP tracker |
1/2 |
1/2 |
1/2 |
1/1 |
1/1 |
|
Output (AC) |
|
||||
|
Nominal AC output power |
3000W |
2500W |
2000W |
1600W |
1000W |
|
Max. AC apparent power |
3000VA |
2500VA |
2000VA |
1600VA |
1000VA |
|
Max. output current |
15A |
12.5A |
10A |
8A |
5A |
|
AC nominal voltage; range |
220V/230V/240V; 180Vac-280Vac |
220V/230V/240V; 180Vac-280Vac |
220V/230V/240V; 180Vac-280Vac |
220V/230V/240V; 180Vac-280Vac |
220V/230V/240V; 180Vac-280Vac |
|
AC grid frequency; range |
50,60H;±5 Hz |
50,60H;±5 Hz |
50,60H;±5 Hz |
50,60H;±5 Hz |
50,60H;±5 Hz |
|
Phase factor at rate power |
1 |
1 |
1 |
1 |
1 |
|
THDI |
<3% |
<3% |
<3% |
<3% |
<3% |
|
AC connection |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
|
Efficiency |
|
||||
|
Max. efficiency |
97% |
97% |
97% |
97% |
97% |
|
Euro - eta |
96.50% |
96.50% |
96.50% |
96.50% |
96.50% |
|
MPPT efficieny |
99.50% |
99.50% |
99.50% |
99.50% |
99.50% |
|
Protection devices |
|
||||
|
DC reverse polarity protection |
yes |
yes |
yes |
yes |
yes |
|
DC switch ratiing for each MPPT |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Output Overcurrent protection |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Output Overvoltage Protection-varistor |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Ground fault monitoring |
yes |
yes |
yes |
yes |
yes |
|
Grid monitoring |
yes |
yes |
yes |
yes |
yes |
|
Integrated all - pole sensitive leakage current monitoring unit |
yes |
yes |
yes |
yes |
yes |
|
General Data |
|
||||
|
Dimensions (W / H / D) in mm |
344*356*151 |
344*356*151 |
344*356*151 |
344*356*151 |
344*356*151 |
|
Weight |
12.4KG |
12.4KG |
12.3KG |
12KG |
11.9KG |
|
Operating temperature range |
-25...+60℃ (-13...+ 140°F) with derating above 45°C(113°F) |
-25...+60℃ (-13...+ 140°F) with derating above 45°C(113°F) |
-25...+60℃ (-13...+ 140°F) with derating above 45°C(113°F) |
-25...+60℃ (-13...+ 140°F) with derating above 45°C(113°F) |
-25...+60℃ (-13...+ 140°F) with derating above 45°C(113°F) |
|
Noise emission (typical) |
≤ 25 dB(A) |
≤ 25 dB(A) |
≤ 25 dB(A) |
≤ 25 dB(A) |
≤ 25 dB(A) |
|
Altitude |
Up to 2000m(6560ft) without power derating |
||||
|
Relative humidity |
95% |
||||
|
Consumption: operating (standby) / night |
<5W / < 0.5 W |
<5W / < 0.5 W |
<5W / < 0.5 W |
<5W / < 0.5 W |
<5W / < 0.5 W |
|
Topology |
transformerless |
transformerless |
transformerless |
transformerless |
transformerless |
|
Cooling concept |
Natural |
Natural |
Natural |
Natural |
Natural |
|
Environmental Protection Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Features |
|
||||
|
DC connection: |
H4/MC4 |
H4/MC4 |
H4/MC4 |
H4/MC4 |
H4/MC4 |
|
AC connection |
Screw terminal |
Screw terminal |
Screw terminal |
Screw terminal |
Screw terminal |
|
Display |
LCD |
LCD |
LCD |
LCD |
LCD |
|
Interfaces: RS485/RS232/ /Wi-fi/SD |
yes/yes/opt/opt |
yes/yes/opt/opt |
yes/yes/opt/opt |
yes/yes/opt/opt |
yes/yes/opt/opt |
|
Remote monitor |
opt |
opt |
opt |
opt |
opt |
|
Warranty: 5 years |
yes /opt |
yes /opt |
yes /opt |
yes /opt |
yes /opt |
|
Certificates and approvals |
CE,IEC 62109, VDE 0126-1-1, VDE-AR-N4105, EN50178,VDE 0126-1-1,EN61000-3-2 EN61000-6-2,EN61000-6-3,ENEL |
||||
Solar Power System On-Grid Solar Inverter Competitive Advantage:
Cost advantages
1) Transformerless design cutting down the cost
2) Light weight and small dimension,reducing shipping cost
3) IP65 protectlon degree,suitable for outdoor installation,reducing Construction cost
4) Low maintenance expense
5) First SD card to update the firmware technology can economize much service cost and use cost
