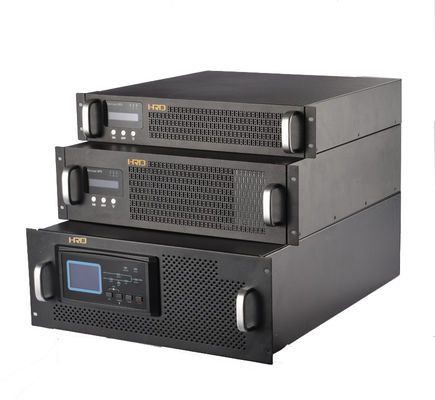

1KVA - 10KVA Rack Mount UPS

China 1KVA - 10KVA Rack Mount UPS  supplier
1KVA - 10KVA Rack Mount UPS  supplier 1KVA - 10KVA Rack Mount UPS  supplier

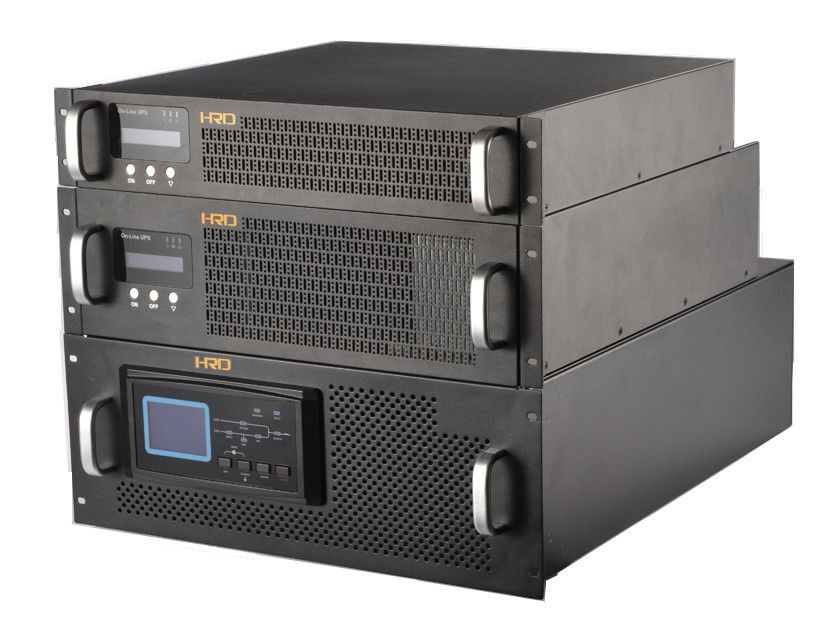

Large Image :  1KVA - 10KVA Rack Mount UPS

Product Details:

Place of Origin: Shenzhen China
Brand Name: HRD/OEM/ODM
Certification: CE, ISO9001:2008
Model Number: PMR01 PMR02 PMR03 ;PCR06,PC10

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: 120-800USD/PCS;
Packaging Details: 1PCS/CTN, standard for export
Delivery Time: 3 weeks after down payment
Payment Terms: TT
Supply Ability: 10000pcs/ month
Warranty: 18months after shipment with 10years technical support
Contact Now
Detailed Product Description
Product Name: Rack Mounted Ups Model: PMR01S,PMR01L,PMR02S
Capacity: 1KVA/0.8kW,1KVA/0.8kW,2KVA/1.6kW Phase: Single
Input PF: Above 0.98 THDi: Less Than 5%

1KVA - 10KVA Rack Mount UPS / 19 Inch LCD Double-Conversion UPS



PM series rack mount online UPS 1-3kva
Perfect Application:
Computer center, network center, communication system
 automatic control system data center or other critical systems.



Main Features:
19inch,2U and 3U Rack mount
High frewuency and online double conversion
Wide input voltage (110-285Vac or 65-148Vac)
Self-diagnosis system at ups start
Digital control technoloy and advanced PFC
Output PF0.8,(0.9 optional)
Lighting and surge protection 1050j
Generator compatible
Smart RS232(USB,SNMP OPTIONAL)
EMI/RFI noise filter
Overview
With true double-conversion design, PowerMaster series provides powerful and overall protection to your sensitive devices. It can accept wider input voltage for harsh environment. It's perfect protection for your precisous servers and workstaiosn.
Specifications
Model PMR01S PMR01L PMR02S PMR02L  PMR03S PMR03L
Capacity 1KVA/0.8kW 1KVA/0.8kW 2KVA/1.6kW 2KVA/1.6kW 3KVA/2.4kW 3KVA/2.4kW
Phase Single
Input voltage
Input PF above 0.98
THDi less than 5%
Rated voltage 220v/230v/240Vac or 110/120/127Vac
Input voltage range Low line  transfer:176 VAC ± 3% @ 100% load
130 VAC ± 3% @ 50% load
85-148Vac( for 110/120/127Vac)
Low line comback:188VAC ± 3% @ 100% load
142 VAC ± 3% @ 50% load;
100vac±5Vac(110/120/127Vac)
High Line Transfer:286 ± 3%148Vac ± 3%(for 110/120/120vac);
High Line Come Back:271 ± 3%;
145Vac±5Vac(110/120/127Vac)
Rated frequency 50/60hz(auto sensing)
Input frequency range 46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
By-pass input
Input voltage range 170VAC—270VAC±5V
Frequency following range 46~54 Hz ◎ 50 Hz / 56~64 Hz ◎ 60 Hz
Recharge battery
Floating charge voltage 28/41VDC 55/84/110VDC 84/110VDC
Recharging current 1A(inbuilt battery) 8A 1A(Rack batt.case) 8A 1A(Rack batt.case) 8A
Battery
Battery quantity 24/36VDC 48V/72/96VDC 72/96VDC
AC output
Power factor 0.8
Phase single
Rated voltage 220v/230v/240v+/-1.5%
Frequency 50/60hz
Frequency stability ±0.1HZ(battery inverter)
Voltage stability within±1.5%( Static)
  Crest factor 3:1(max)
Wave distortion Linear load less 3%,Non-linear load less 5%;
Over load ability 30s when overload is 108%~150%;200ms above 150%;
Transfer time 0ms
Alarm
AC abnomal Alarm every 4 seconds
Battery low voltage Keep alarm every 1 second
Overload Keep alarm every 0.5 second
Failure Keep alarm
System
Efficiency above 87%
Display LCD+LED
Protection

Output short circuit , Overload , Output low voltage, Battery low voltage,

  Over-temperature etc.

 over-voltage protection,over-tempreture protection for charger PCB,and soft-start function for each function module.
Infterface RS232(USB OPTIONAL)
Working Temp. 0~40℃
Relative humidity 0~90%( No coagulation)
Cooling Intelligent speed-control Fan
Input & output  Socket(Optional)
Others
Surge protection IEC60664—1 Graded protection
EMI EN 55022  Grade A
ESD IEC 1000-4-2:Grade 3
EFT IEC 1000-4-4:Grade 3
RS IEC 1000-4-3:Grade 3
SURGE IEC 1000-4-5:Grade 3
Physical
Weight(N/G)kgs 12.5/14.5 7.0/8.0 11.0/13.0 28.0/31.0 11.0/13.0 28.0/31.0
Unit Size
(D*W*H)
440* 440 *87 mm 440* 440 *87 mm(long run model)
440* 440 *134 mm( inbuilt battery model)
Packing Size
(D*W*H)
570*570*185mm 570*570*185mm(long run model),2U
640*570 *230mm( inbuilt battery model),3U
PC Plus Rack mount 6-10kva with output PF0.9
•19'inch, rack mount, 3/4U design 6kva to 10kva
•True online high frequency double-conversion
•Advanced DSP controlled ,excellent performance with super high quality
•Output Power Factor 0.9
•Wide input frequency range (40-70Hz)
•Wide input voltage range
•50Hz/60Hz frequency converter mode
•Eco mode operation for energy saving (Optional)
192Vdc and 240Vdc convertible easily
•Emergency power off function (EPO)
History event record function,100 events
•Cold start and AC start function
•Automatic 4 levels speed fan control according to load and temperature
•Advanced N+1 redundancy parallel technology(Max.6units)
•Support any kinds of  Generator

PC Plus RACK MOUNT 6K/10K  ONLINE HF UPS

MODEL PCPR 06S PCPR 06L PCPR 10S PCPR 10L
PHASE 1 phase in / 1 phase out
CAPACITY 6Kva / 5.4Kw 10Kva/ 9Kw
INPUT
Voltage Range Low Line Transfer  176 VAC ± 3% @ 100% load
130 VAC ± 3% @ 50% load
Low Line Comeback  188 VAC ± 3% @ 100% load
142 VAC ± 3% @ 50% load
High Line Transfer  286 VAC ± 3%
High Line Comeback  270 VAC ± 3%
Frequency Range   40-70Hz
following range 46~54 Hz @ 50Hz ,56~64 Hz @60Hz
Phase Single phase with ground
Power Factor > 0.99  @ 100%load
OUTPUT
Output Voltage 208/220/230/240 VAC
AC Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 46~54 Hz @ 50 Hz / 56~64 Hz @ 60 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤ 3 % THD (Linear Load) , ≤  6 % THD (Non-linear Load)
Transfer Time AC Mode to Batt. Mode Zero
Inverter to Bypass Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 92%
Battery Mode 91%
BATTERY
Standard model Battery Type lead-acid battery maintanence free
Numbers 16/20Pcs
Typical Recharge Time 3 hours recover to 90% capacity 4 hours recover to 90% capacity
Charging Current (max.) 1A ±10% 4A±10% 1A ±10% 4A ±10%
Charging Voltage  220/273 VDC ± 1%
Long-run Model Battery cabinet  16/20pcs 7ah without batt.  16/20pcs9ah without batt.
INDICATORS
LCD Panel UPS status, Load level, Battery level, Input/Output voltage,
output current,Bus voltage, Temp, and warning
 and fault code and events
ALARM
Battery Mode Sounding every 4 seconds( can mute)
Low Battery Sounding every second
Overload Sounding every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension,
 D X W X H (mm)
UPS Unit : 580 X 438 X 176 [4U]
Battery Pack : 580 X 438 X 176 [4U]
UPS unit: 580 X 438 X 176[4U] UPS Unit: 668 X 438 X 176 [4U]
Battery Pack : 580 X 438 X 176 [4U]
UPS unit: 668 X 438 X 175[4U]
Net Weight (kgs) UPS Unit : 22 kgs
Battery Pack : 62kgs
22kgs UPS Unit : 25 kgs
Battery Pack :75 kgs
25kgs
ENVIRONMENT
Operation Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
