110V / 120Vac Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva

110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva
110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva 110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva

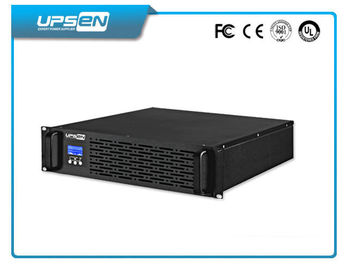

Large Image :  110V / 120Vac Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Rack Mount Star Series 1-10Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Rack Mount Online Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

rack mounted ups systems

,

uninterruptible power supply rack mount



110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva

1:  Rack Mounted 19 Inch and 2U 3U 5U height design

2:  Rack UPS with ECO and advanced ECO mode for energy saving

3:  N+X parallel redundancy available for 6K and up models

4:  Rack Mountable Online UPS with Emergency Power Off Function (EPO)

5:   UPS Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)





Key Features:



o    True double-conversion online UPS

o    Output power factor 0.8

o    User-friendly and easy-shift LCD display

o    Rack Mounted 19 Inch and 2U 3U 5U height design

o    Programmable power management outlets

o    50/60 Hz frequency converter mode

o    ECO and advanced ECO mode for energy saving

o    Emergency Power Off Function (EPO)

o    Hot-swappable battery design for 1-3K models only

o    DSP technology applied for 6K and up models

o    Active input power factor correction 0.99 for 6K and up models

o    N+X parallel redundancy available for 6K and up models





Rack Mountable UPS Application
Servers, Data-Center, Critical network devices, Sensitive electronic, Telecom...





Technical Specification



Rack Mount Star Series RM1K-10K
Model RM1K RM2K RM3K RM1KL RM2KL RM3KL RM6KL RM10KL
Input Phase Single Phase with Ground
Nominal Voltage 110/115//120Vac or 220/230/240Vac 220/230/240Vac
Voltage Range 60-138VAC  or 115 ~ 300VAC 176 ~ 276VAC
Frequency Range 46 ~ 54Hz(default), user adjustable within 40~60Hz 46 ~ 54Hz
Power Factor 0.97 0.98
Connection IEC320-10A inlet IEC320-16A inlet IEC320-10A inlet IEC320-16A inlet Terminal Block
Output Phase Single Phase
Voltage 110/115/120Vac or 220/230/240VAC ± 2% 110/115/120Vac or 220/230/240VAC± 1%
Frequency 46~54Hz or 50Hz ± 0.2Hz (Line mode) 46~54Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode) 50Hz ± 0.05Hz ( Battery mode)
Waveform Pure Sine Wave
Power Factor 0.7/0.8 Optional
Overload Capability 108%~150% for 30 sec., 150% for 300 ms

105%~130% for 10 min.,

130% for 1 min.

Current Crest Ratio 3:1
Connections IEC320 -10A * 4

IEC320-10A and

Terminal Block

IEC320 -10A * 4

IEC320-10A and

Terminal Block

IEC320-10A * 4 and

Terminal Block

Bypass Automatic Transfer on overload and UPS failure
Before UPS Power-on Default “NO”, user adjustable to “YES” Yes
Voltage Range  80~264VAC (Default), user adjustable within 80~286VAC 176 ~ 261VAC
Transfer Time 0 ms; less than 4 ms from inverter to bypass and vice versa Zero
LED /LCD indicators

Load level / Battery level, Battery , Utility Power,

Inverter, Bypass, Overload, Fault

Audible Alarm Bypass, On battery mode, Battery low, Overload, Fault
Communications RS-232 Serial Interface
Intelligent Slot;

OPTIONS:  WEBPOWER SNMP/WEB card,

AS400 card or WinPower CMC)

Network Surge Protection RJ45 I/O port available for network or Fax/Modem
Environmental Operating Temperature 0 ~ 40°C
Operating Humidity 20 ~ 90% non-condensing
Main Unit Net Weight (Kg) 16.3 10.3 11.2 9.1 11.5 12.3 18.3 20.3
Dimensions (W x D x H) mm 482 x 420 x 88 (2U)

482 x 420 x 88 (2U) or

(3U Internal Batteries)

482 x 420 x 88 (2U) 482.6 x 600 x 130 (3U)
Battery Pack Type Internal Batteries External Battery Pack
Nominal DC Voltage 24/36VDC 48/72VDC 72/96VDC 24/36VDC 48/72VDC 72/96VDC 192/240VDC

Battery Numbers

 & Capacity

2/3Pcs *12V7.2Ah 4/6Pcs *12V7.2Ah 6/8Pcs *12V7.2Ah

Depending on the capacity of

external battery packs

Backup Time (Full load)      5 min 7min (with 1 BP) 5 min (with 1 BP)
Recharge Time 5hrs to 90% 5hrs to 90% 5hrs to 90%
Charging Current (Max.) 1.0A 1.0A 1.0A 8A±1A 4.2A
Charging Voltage 41.1Vdc±0.6V 110Vdc±0.4V 41.1Vdc±0.6V 110Vdc±0.4V 274Vdc±1%V
Net Weight (Kg)  --- 25.3 25.3 --- --- --- ---
Dimensions  (W x D x H) mm  --- 482 x 420 x88 (2U) 482 x 420 x88 (2U)  --- --- ---  ---





110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva 0110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva 1110V / 120Vac  Rack Mounted Ups Systems With Long Runtime 1Kva - 10Kva 2
