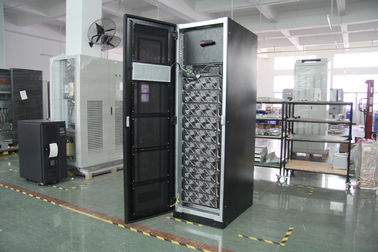

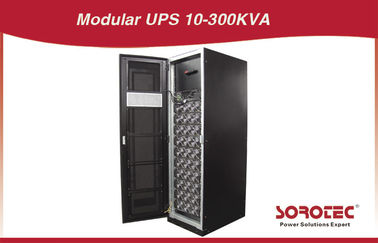

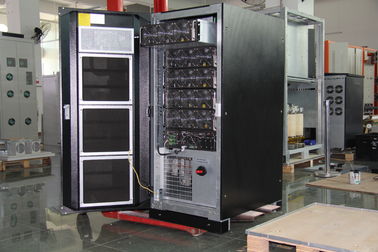

Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA

Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA
Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA

Large Image :  Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: MPS9335 10 - 300KVA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Single Phase: 220V Input Power Factor: ≥0.99
Three Phase: 380/400/415VAC Output Power Factor: 0.9
Input Frequency Range: 50/60Hz Frequency Range: 40-70Hz
Three Phase Angle Accuracy: 120°c ± 0.5°c Operation Temperature: 0-40 °c
High Light:

uninterruptible power source

,

ups uninterruptible power supply

Smart Rack Mount UPS High Frequency Online Modular UPS 10 - 300KVA





Key Features:



1.   Superior energy saving and environment-friendly: Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%



 2.   Superior capability of powering load: Output PF is 0.9, no need of power deration with load of leading or lagging PF



3.   Easy-to-install: Top or bottom cabling, no need of input cabling cabinet.



4.   Easy-to-maintain: Full front access, UPS, failed part can be replaced shortly



5.   Easy-to-modify: The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.



6.  6-inch extra large LCD that can display 12 language ( Chinese,English , Russian , Spanish , French and so on )



7.touch screen optional







Application:

ApplicationIDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation,  precision equipment, etc.







Technical Specifications of Modular UPS, MPS9335 10-300KVA

Model

                             MPS9335 10-300KVA
Capacity                                     10-300KVA
Main input
Input voltage          380V/400V/415AC(Optional South America 208v)
Input Frequency Range                                  50/60Hz
Power Factor                     Full load>0.99 ,Half load >0. 98
THDi                                  THDi <3%
Input power soft-start fantion                               5-30s settable
Input Voltage Ranges   228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range                                 40-70Hz
Battery
Battery Voltage  ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy                                     ± 1%
Bypass
Bypass Input voltage                     380/400/415VAC 3-phase 4-wire
Voltage Ranges   Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity  150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Output
Inverter Output Voltage                     380/400/415VAC 3-phase 4-wire
Voltage Accuracy          ± 0.5%(balanced load),   ± 1% (unbalanced load)
THDi          THD<1%(linear load),  THD<3%(nonlinear load)
Power Factor                                          0.9
Three Phase Angle accuracy                                120°c ± 0.5°c
Current Crest Ratio                                          3:1
Overload Capacity              110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time                           0ms,15ms(ECO Mode)
System
Frequency                           50Hz/60Hz (Settable)
Mains synchronization range   ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level                                        IP20
Communication Ports  RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency   > 96% at load above 50%, >95% at load above 25%
Operation Temperature                                       0-40 °c
Storage Temperature                       -25 °c -70 °c (without battery)
Humidity                             0-95%(no-condensing)
Noise(dB)                         55-62dB,Adjusted with load
  5 module cabinet   module :RMS050/10, RMS100/20, RMS150/30   150KG
  10 module cabinet   module :RMS100/10, RMS200/20, RMS300/30   150KG
    module :PM10              10KVA power module :20KG
Weight   module :PM20              20KVA power module :21KG
    module :PM30              30KVA power module :32KG
Dimendion(W XD XH)mm   5 module cabinet                       600X1400X850
10 module cabinet                       600X2070X850
power module       440X132X660(10KVA/20KVA/30KVA)





UPS Modules:

Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA 0 Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA 1






Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA 2



Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA 3



Smart Rack Mount solar charge controller inverter UPS 10 - 300KVA 4
