230W Low Iron High transmision Polycrystalline Solar Panels For Power Station

China 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station supplier
230W Low Iron High transmision Polycrystalline Solar Panels For Power Station supplier 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station supplier 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station supplier 230W Low Iron High transmision Polycrystalline Solar Panels For Power Station supplier

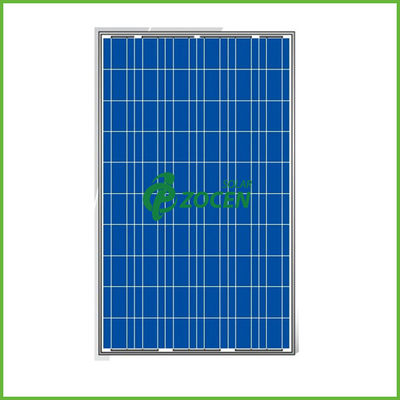

Large Image :  230W Low Iron High transmision Polycrystalline Solar Panels For Power Station

Product Details:

Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-60P-230W

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 200MW/year
Contact Now
Detailed Product Description

Product Name
230W Polycrystalline Solar Panel
Model
ZCP6-60P-230W
Solar Cell
156*156mm Polycrystalline solar cells
EVA
Anti-aging
Cells in series
60pcs in a 6*10
Safety
Class II
Tempered Glass
3.2mm Low Iron & Anti-reflective coating
Size
1640*992*40mm
Back Sheet
Double-sided fluorine TPT
Life time
25years
Aluminum Frame
Anodized aluminum alloy
Tolerance
0~3%



























230W Low Iron High transmision Polycrystalline Solar Panels For Power Station





2> Warranty & Certification

  • Warranty: 25-year linear performance warranty and 10-year product warranty
  • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, BV, ISO9001
  • Insulation Class II / Safety Class II
  • CHUBB Insurance

2> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.

3> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality



4> Specifications

  • 230W Polycrystalline Solar Panel I-V Curves

230W Low Iron High transmision Polycrystalline Solar Panels For Power Station



  • 230W Polycrystalline Solar Panel Electrical Characteristics
Maximum Power(Pmax)
230W
Power Tolerance
±3%
Open Circuit Voltage(Voc)
36.70
Short Circuit Current(Isc)
8.52
Maximum Power Voltage(Vmp)
29.40
Maximum Power Voltage(Imp)
7.83
Module Efficiency
14.14%
Max. System Voltage
1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
60cs(6*10)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.33%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





  • 230W Polycrystalline Solar Panel Mechanical Characteristics
Dimension
1940*992*40(mm)
Frame
Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

Weight
19.5KGS



  • Packing configuration
Container
40“HQ
Module dimension
1640*992*40mm
Pieces per pallet
24 4
Pallets per container
28 14
Pieces per container
728





5> Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications
