215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System

215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System
215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System 215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System 215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System

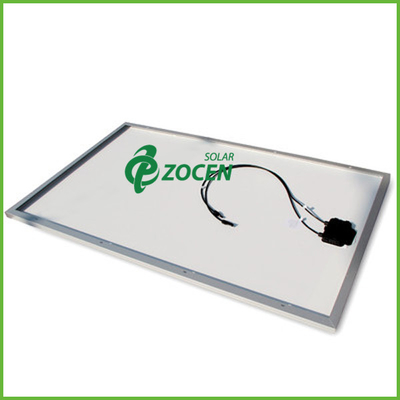

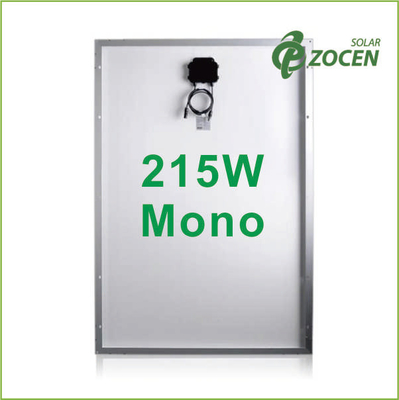

Large Image :  215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC61215, IEC61730, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM6-54P-215W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24pcs per pallet
Delivery Time: 10-15 days
Payment Terms: Ex works, L/C, T/T, Western Union
Supply Ability: 30000pcs / month
Detailed Product Description
Peak Power: 215W Power Tolerance: ±3%
Cell Size And Series: Monocrystalline 156*156mm(6 Inch) 54pcs(6*9) Safety Class: Grade II
Temperature Coefficiency Of Pmax: -0.47% / ℃ Temperature Coefficiency Of Voc: --0.35% / ℃
Temperature Coefficiency Of Isc: 0.05% / ℃
High Light:

photovoltaic solar panel

,

monocrystalline solar module

215 Watt Mono PV Solar Panel Grade A Solar Cell for Off-grid / Grid-tied System





1> Basic information

Item215W Monocrystalline Solar PanelModelZCM6-54P-215W
Solar cell156*156mm(6 inch), grade AEVAAnti-aging
Warranty10 years 90% + 25 years 80%Safety gradeClass II
ChubbProduct Liability Insurance (PCO) Life timemore than 25years
Aluminum frameAnodized aluminum alloyTolerance0~+3%


2> Warranty & Certification:

  • Warranty: 10 years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25 years.
  • Panels meet highest international standards ISO9001 and ISO14001 and are certified with TUV, IEC61215, IEC61730, CE, CQC, CEC, MCS, BV
  • Chubb Insurance: Product Liability Insurance (PCO) and Errors or Omissions Liability Insurance (E&O)
  • Safety Grade: Class II


3> Solar panels structure



Solar Cells
54(6×9) monocrystalline cells156mm
Front Cover
3.2mmthick low iron tempered glass
Back Cover
TPT(Tediar-PET-Tediar)
Encapsulant
EVA(Ethylene vinyl acetate)
Frame
Anodized aluminum alloy, double wall
Diodes
6 Bypass diodes serviceable
Junction Box
IP65 rated, TUV certification
Connector
MC4 or compatible connector
Cables
Length:1000mm,/Section:4.0mm2
Dimension
1482*992*40(mm)
Weight
18KGS
Max Load
5400Pa



4> 215W PV Monocrystalline Solar Panel Electrical Characteristics

  • Maximum Power(Pmax): 215W
  • Power Tolerance: 0~+3%
  • Open Circuit Voltage(Voc): 33.4V
  • Short Circuit Current(Isc): 8.56A
  • Maximum Power Voltage(Vmp): 26.90V
  • Maximum Power Voltage(Imp): 8.01A
  • Max. System Voltage: IEC:1000V / UL:600V



5> 225W Photovoltaic Polycrystalline Solar PanelPacking configuration

Container
40“HQ
Module dimension
1640*992*40mm
Pieces per pallet
244
Pallets per container
3015
Pieces per container
780





6> Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications
