Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels

China Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels supplier
Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels supplier Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels supplier Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels supplier Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels supplier

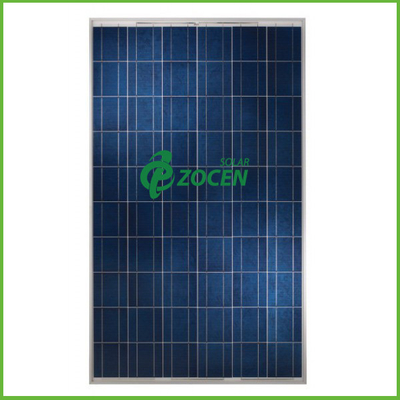

Large Image :  Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels

Product Details:

Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-60P-220W

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1500 pcs /day
Contact Now
Detailed Product Description

  • Product name: 220W Polycrystalline solar panels / modules / photovoltaic solar panels / PV solar panels
  • Solar cell: 156*156mm(6 inch) Poly-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
  • Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
  • EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
  • Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
  • Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
  • Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
  • Life time: 25 years
  • Power specification at 1kW/m 2, AM1, 5
  • Output cable: multi contact connectors

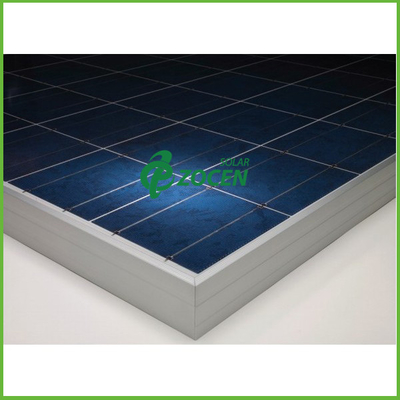

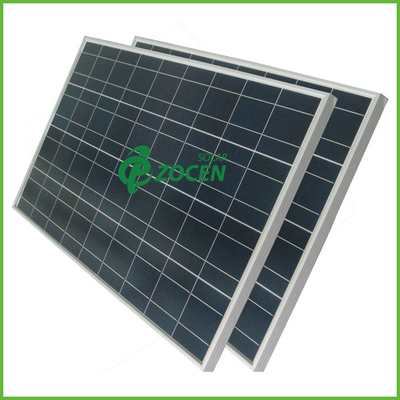

Portable 220W Photovoltaic Solar Module, Marine / Roof Mounted Solar Panels



1> 220W Photovoltaic Solar Module Electrical Characteristics

Maximum Power(Pmax)
220W
Power Tolerance
±3%
Open Circuit Voltage(Voc)
36.40
Short Circuit Current(Isc)
8.38
Maximum Power Voltage(Vmp)
29.00
Maximum Power Voltage(Imp)
7.59
Module Efficiency
13.52%
Max. System Voltage
1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
60cs(6*10)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.33%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





2> 220W Photovoltaic Solar Module Mechanical Characteristics

Dimension
1940*992*40(mm)
Frame
Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

Weight
19.5KGS





3> 220W Photovoltaic Solar Module Packing configuration

Container
40“HQ
Module dimension
1640*992*40mm
Pieces per pallet
24 4
Pallets per container
28 14
Pieces per container
728





4> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality



5> Warranties

  • 10years workmanship or products warranties
  • Guarantee the power 90% in the first 12 years
  • Guarantee the power 80% in 25years.
  • CHUBB insurance

6> Quality & Safety

  • Certification: CE, TUV, IEC61215, IEC61730, MCS, CQC, CEC, BV
  • ISO9001, ISO14001, ISO18001 Approval
  • Class II Safety Approval, Conformity to CE
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Packaging optimized to protect product during transportation and minimize on-site waste.





7> ZOCEN SOLAR Overview

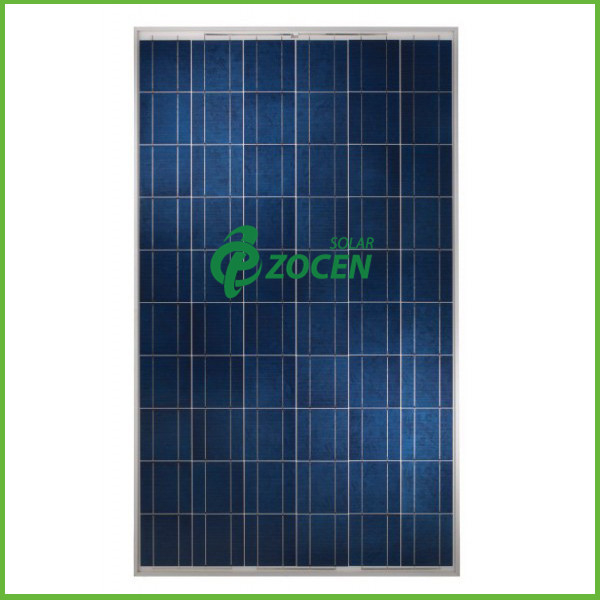

Portable 220W Photovoltaic Solar Module , Marine / Roof Mounted Solar Panels
