270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module

China 270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module supplier
270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module supplier 270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module supplier 270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module supplier 270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module supplier

Large Image :  270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module

Product Details:

Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC61215, IEC61730, Safety Class II, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-72P-270W

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 30000 pieces per month
Contact Now
Detailed Product Description

270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module



1> Quick Details:

Product Name
270W Polycrystalline Solar Panel
Model
ZCP6-72P-270W
Solar Cell
156*156mm Polycrystalline solar cells
EVA
Anti-aging
Cells in series
72pcs in a 6*12
Safety
Class II
Tempered Glass
3.2mm Low Iron & Anti-reflective coating
Size
1956*992*45mm
Back Sheet
Double-sided fluorine TPT
Life time
25years
Aluminum Frame
Anodized aluminum alloy
Tolerance
0~3%



























2> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality



3> Warranty & Certification

  • Warranty: 25-year linear performance warranty and 10-year product warranty
  • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, BV, ISO9001
  • Insulation Class II / Safety Class II
  • CHUBB Insurance



4> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.



5> Specifications

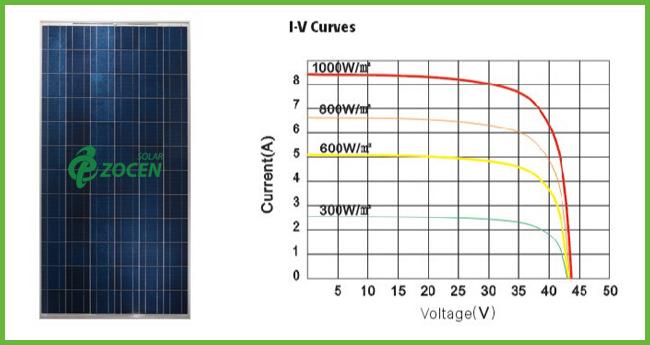

  •  270W 36 Volt Polycrystalline Silicon Solar Panel I-V Curves

270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module



  • 270W 36 Volt Polycrystalline Silicon Solar Panel Electrical Characteristics
Maximum Power(Pmax)
270W
Power Tolerance
±3%
Open Circuit Voltage(Voc)
43.90
Short Circuit Current(Isc)

8.39

Maximum Power Voltage(Vmp)
35.00
Maximum Power Voltage(Imp)
7.72
Module Efficiency
13.92%
Max. System Voltage
1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
72cs(6*12)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.33%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





  • 270W 36 Volt Polycrystalline Silicon Solar Panel Mechanical Characteristics
Dimension
1956*992*45(mm)
Frame
Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

Weight
22.5KGS



  • 270W 36 Volt Polycrystalline Silicon Solar Panel Packing configuration
Container
40“HQ
Module dimension
1956*992*45mm
Pieces per pallet
21 2
Pallets per container
22 11
Pieces per container
484





6> 270W 36 Volt Polycrystalline Silicon Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications

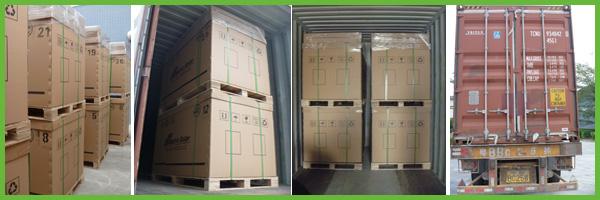

7> 270W 36 Volt Polycrystalline Silicon Solar Panel Shipment



270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module



Shipment
