High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49%

China High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49% supplier
High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49% supplier High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49% supplier High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49% supplier High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49% supplier

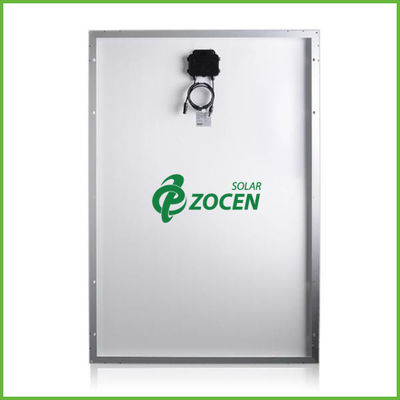

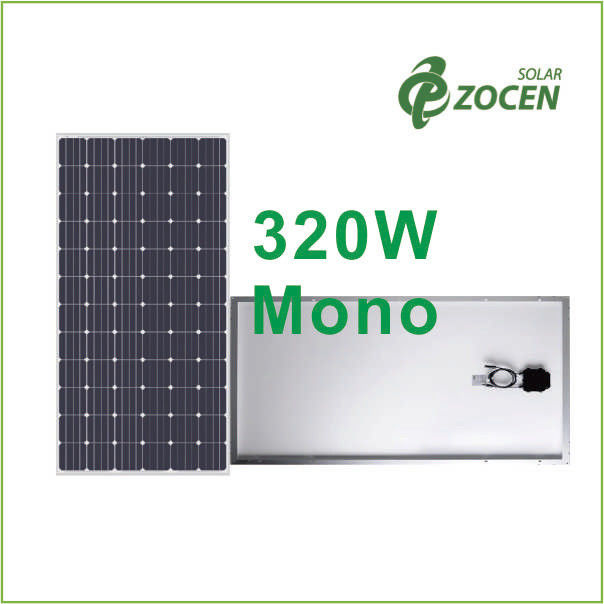

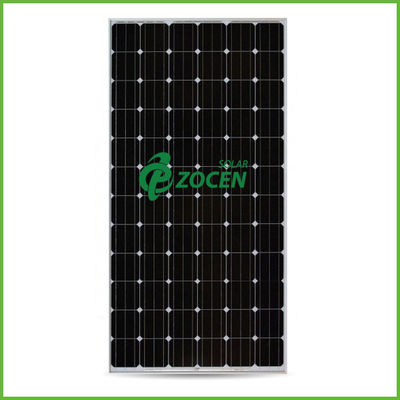

Large Image :  High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49%

Product Details:

Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM6-72P-320

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 21pcs / pallet
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 30000pcs / month
Contact Now
Detailed Product Description
Power: 320W Vmp: 37.40V
Imp: 8.56A Voc: 45.8V
Isc: 8.85A Panel Efficiency: 16.49%
Maximum System Voltage: 1000VDC Solar Cell: Monocrystalline 156*156mm Solar Cell
Insurance: Chubb Insurance Guarantee: 10 Years For Products And 25 Years Linear Power Performance

High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49%



1> Descriptions

  1. Product name: 320W Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels
  2. Solar cell: 156*156mm(6 inch) Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
  3. Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
  4. EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
  5. Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
  6. Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
  7. Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
  8. Life time: 25 years
  9. Power specification at 1kW/m 2, AM 1, 5
  10. Output cable: multi contact connectors
  11. Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.



2> Quality & Safety:



  • Rigorous quality control meeting the highest international standards
  • High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
  • ISO 9001:2008 ,ISO 14001:2004 and OHSAS18001
  • CEC, MCS, TUV, BV, IEC61215,IEC61730,Safety Class II,conformity to CE
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Panel packaging optimized to protect product during transportation and minimize on-site waste.



3> Features:

  • Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded





4> Specifications



  • 320W Monocrystalline Solar Panel I-V Curves

High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49%



  • 320W Monocrystalline Solar Panel Electrical Characteristics
Maximum Power(Pmax)
320W
Power Tolerance
0~3%
Open Circuit Voltage(Voc)
45.80
Short Circuit Current(Isc)
8.85
Maximum Power Voltage(Vmp)
37.40
Maximum Power Voltage(Imp)
8.56
Module Efficiency
16.49%
Max. System Voltage
1000VDC
Solar Cells

Monocrystalline156*156mm(6 inch)

Cells series
72pcs(6*12)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.35%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





  • 320W Monocrystalline Solar Panel Mechanical Characteristics
Dimension
1956*992*45(mm)
Frame
Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

Weight
22.5KGS











5> Advantages of Solar Panels


  • Ecologically Friendly - For obvious reasons, the use of solar panels is Eco-friendly and considered one of the most "green" electricity resources. Because because they operate by interacting with a renewable energy source, sunlight, there is no fear of depleting yet another natural resource.
  • Decreased Electrical Bill - By switching to solar energy, you will save money on your electrical bills every month. Even if electricity bills continue raising in the next few months you will have the peace of mind knowing that your energy source is based on solar power.
  • Low Maintenance - Solar panels have no moveable parts and are very simple to use. After being set up properly, they do not need to be tinkered with and will continuing working for many years. In fact, many manufacturers have 25 year warranties on their panels.
  • Efficiency - No matter where you live, the chances are that you can successfully use solar panels for you electrical needs. They are rugged and are very adaptable to climate conditions and the latest panel models are efficient enough to work well without facing directly south and some will even produce electricity under cloud cover.



6> ZOCEN SOLAR Overview



High Performance , 320W Monocrystalline Solar Panels with Efficiency up to 16.49%

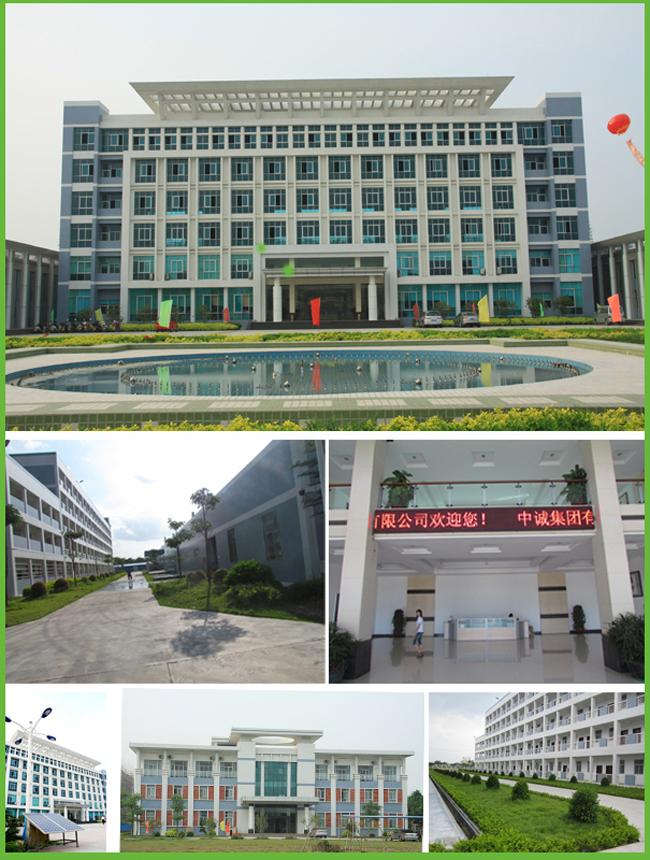

ZOCEN Factory
