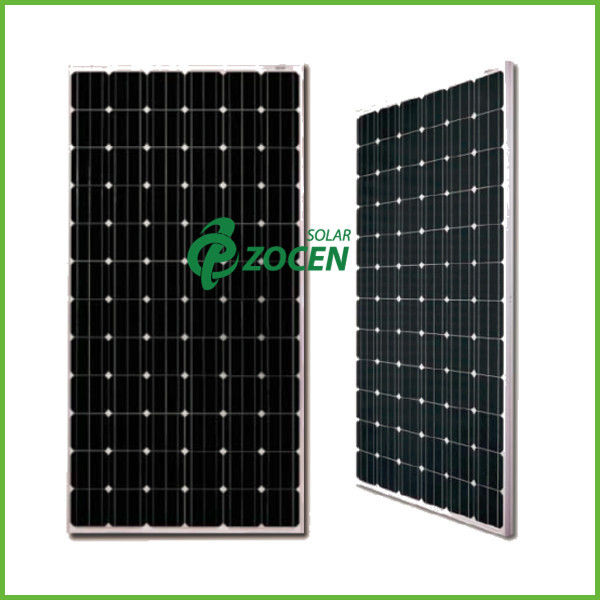

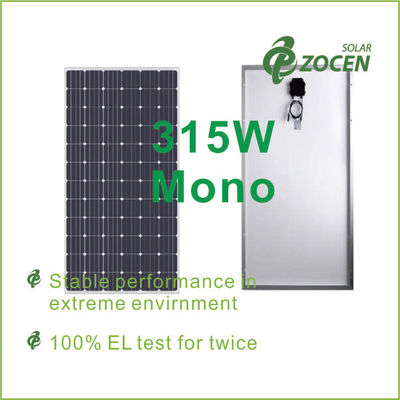

Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels

China Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels supplier
Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels supplier Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels supplier Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels supplier Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels supplier

Large Image :  Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels

Product Details:

Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM6-72P-315W

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 21pcs/pallet
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description





Unmatched Performance, Reliability and Aesthetics 315W Monocrystalline Solar Panels



1> Descriptions:

  • This 315W monocrystalline solar panel is ideal for large commercial applications
  • Engineering Excellence: High module efficiency for an outstanding balance of size and weight to power and performance.
  • Reliable: 25-year limited warranty on power output and 10-year limited warranty on materials or workmanship.

  • High Performance:This solar panels uses an advanced surface texturing process to increase light absorption and improve efficiency.

  • Zocen solar panels are manufactured in ISO9001:2000 AND ISO 14001:2004 certified facilities

2> Details:

  • Product name: 315W Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels
  • Solar cell: 156*156mm(6 inch) Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
  • Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
  • EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%

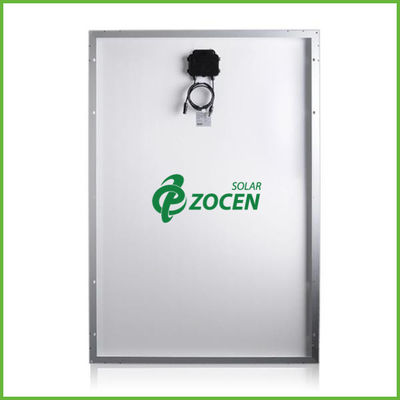

  • Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.

3> Warranty & Certification

  • Warranty: 25-year linear performance warranty and 10-year product warranty
  • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, BV, ISO9001
  • Insulation Class II / Safety Class II
  • CHUBB Insurance



4> Features:

  • Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded



5> Specifications



  • 315W Monocrystalline Solar Panel Electrical Characteristics
Maximum Power(Pmax)
315
Power Tolerance
0~3%
Open Circuit Voltage(Voc)
45.60
Short Circuit Current(Isc)
8.82
Maximum Power Voltage(Vmp)
37.20
Maximum Power Voltage(Imp)
8.47
Module Efficiency
16.23%
Max. System Voltage
1000VDC
Solar Cells

Monocrystalline156*156mm(6 inch)

Cells series
72pcs(6*12)
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
-0.47%/°C
Temperature Coefficients of Voc
-0.35%/°C
Temperature Coefficients of Isc
0.05%/°C
NOTC-Nominal Operating Cell Tepm.
45℃(±2°C)
STC Condition
1000W/m2, AM1.5, 25°C





  • 315W Monocrystalline Solar Panel Mechanical Characteristics
Dimension
1956*992*45(mm)
Frame
Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm

Weight
22.5KGS



  • 315W Monocrystalline Solar Panel Packing configuration
Container
40“HQ
Module dimension
1956*992*45mm
Pieces per pallet
21 2
Pallets per container
22 11
Pieces per container
484





5> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.

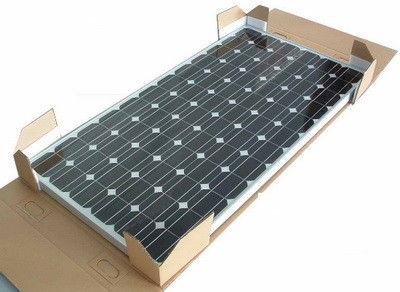

  • Module packaging optimized to protect product during transportation and minimize on-site waste.



6> Do solar panels wear out?





Solar panels are very hardy. Compared to alternative power sources, they wear out very slowly. Their effectiveness decreases around 1 to 2 percent a year. This means after a five year mission (boldly going where no probe has gone before), the solar panels will still be making more than 90% of what they made at the beginning of the mission (as long as they haven't gotten farther away from the Sun).



There are two major dangers to solar panels in space besides regular wear-and-tear:

Solar flares, which are unpredictable severe bouts of radiation that can damage the electronics inside the panels.
Micrometeorites, which are tiny, gravel-sized bits of rock and other space junk floating in space can scratch or crack solar panels. The solar concentrator as well as a thick layer of glass protect the solar panels from these.
