Product Details:
Payment & Shipping Terms:
|
| High Light: | solar panel,solar module,panel solar |
||
|---|---|---|---|

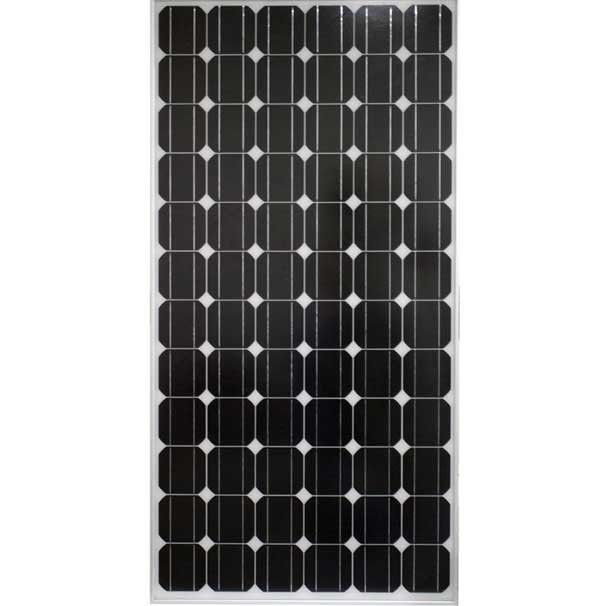

Monocrystalline Silicon Solar Panel300W
Who we are?
Shandong Hilight -Solar Co.,Ltd is located in Zouping ,Shandong Province, China, which is near Jian International Airport.
We are manufacturer specialized in R&D, manufacturing, sales & service of 5Wp-310Wp mono-crystalline and poly-crystalline solar modules. Hilight solar products are widely used for solar power system, solar street light, solar garden light, solar lawn light ,solar pump and other solar correlative products.
Hilight solar PV modules passed TUV, IEC 61215 & IEC 61730, CEC, CE, ISO etc. certificates. HilightSolar products are marketable in Europe, South America, Australia, Africa and Southeast Asia countries. Wehave flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.
For more information, please enter Hilight Solar Power World.
Our strengths:
1) First-grade cells
2) High-efficiency and low-price products
3) 25 years output warranty
4) 10 years manufacturing warranty
5) Stable production line
6) TUV, IEC, CE, ISO, CEC
Mechanical Parameters
| Solar Cell | 72(6x12) mono solar cells 156 x 156 mm |
| Front Cover | 3.2 mm thick, tempered glass |
| Back Cover | TPT (Tedlar-PET-Tedlar) |
| Encapsulant | EVA (ethylene vinyl acetate) |
| Frame | Double-layer anodized aluminium alloy |
| Junction Box | IP65 rated |
| Cables/Connectors | 4.0 square mm 900mm / MC4 or compatible connectors |
| Dimensions | 1956×992×50 mm |
| Weight | 25kg |
Working Conditions
| Maximum System Voltage | DC1000V (IEC) |
| Maximum Series Fuse | 15 A |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | -40°C~+85°C |
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa |
| Application Class | Class A |
| Module Area (square meter) | 1.94 |
| Packing configuration | 264 Pcs./20 ft,container 528 Pcs./40 ft, container |
Design Characteristics
A. Professional Manufacturers Of Mono & Poly Silicon PV Module
B. High Conversion Efficiency Solar Module
C. High transmission rate and low iron tempered glass
D. Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame
E. Long life, Easy installation, high wind and hail impact resistance etc advantage.
F. Be resistant to atmospheric exposure and effects of delamination
G. Strict quality control and power classification of modules
H. Ready to use with junction box, cabling and connectors
I. TUV, IEC, CE, CEC, ISO Approved
J.25 years Warranty , 90% of original efficiency in 10years, and 80% in 25 years.
Solid Reliable Construction
A. Strong frames made from anti-corrosion (anodized) treaded aluminum
B. Toughened Glass surface and reinforced backing board designed to prevent water intrusion
C. Sealed Junction boxes filled with resin to keep moisture out, and highest quality EVA and
sealants to further protect against moisture
D. Module frames contain mounting points for ease of installation with a variety of track
Electrical parameters
| Mono Solar Panel Model | Power (Wp) | Solar Cell Array | Size: MM ( L x W x H ) | Vmp (V) | Imp (A) | Voc(V) | Isc(A) |
HSPV260Wp-156-72M | 260 W | 72PCS(6X12) | 1956x992x50 | 36 | 7.36 | 44 | 8 |
HSPV265Wp-156-72M | 265 W | 72PCS(6X12) | 1956x992x50 | 36.1 | 7.34 | 44.2 | 8.1 |
HSPV270Wp-156-72M | 270 W | 72PCS(6X12) | 1956x992x50 | 36.2 | 7.46 | 44.4 | 8.2 |
HSPV275Wp-156-72M | 275 W | 72PCS(6X12) | 1956x992x50 | 36.3 | 7.58 | 44.5 | 8.3 |
HSPV280Wp-156-72M | 280 W | 72PCS(6X12) | 1956x992x50 | 36.4 | 7.69 | 44.8 | 8.32 |
HSPV285Wp-156-72M | 285 W | 72PCS(6X12) | 1956x992x50 | 36.5 | 7.81 | 45 | 8.45 |
HSPV290Wp-156-72M | 290 W | 72PCS(6X12) | 1956x992x50 | 36.6 | 7.92 | 45 | 8.6 |
HSPV295Wp-156-72M | 295 W | 72PCS(6X12) | 1956x992x50 | 36.7 | 8.04 | 45 | 8.63 |
HSPV300Wp-156-72M | 300 W | 72PCS(6X12) | 1956x992x50 | 36.7 | 8.17 | 45 | 8.63 |
Manufacturing Process:
Certificates Approved
Monocrystalline solar panels
Polycrystalline solar panels
Workshop
Trade show
Packaging
Loading to the container
Solar power plant
Roof-top solar power system
Cases:
Sincerely hope to cooperate with you, my friend.
