Product Details:
Payment & Shipping Terms:
|
| Product Name: | Good Quality Solar Panel | Applicant: | Solar Power Generator |
|---|---|---|---|
| Size Of Panel: | 1480*680*40 | Solar Cells Style: | 156*156 |
| Solar Cells Array: | 4*9 Pcs | Max Output Power: | 150W |
| Standard: | CE/CSA/TUV | Grade: | A Grade |
| Weight: | 11.0Kg | ||
| High Light: | high efficiency solar panels,high power solar panels |
||

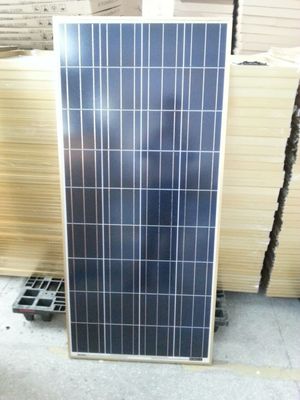

Best Quality 150 Watt Poly Solar Panel 1480 x 680 Solar Stocks Yellow Frame
Features
1. High cell efficiency with quality silicon materials for long term output stability
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. Both Polycrystalline and Monocrystalline
5. Excellent performance in harsh weather
6. Outstanding electrical performance under high temperature and low irradiance
Benefits
Manufactured in an ISO 9001:2000 certified plant
High efficiency , high safety , high reliability
Output power tolerance of +/-3%.
25 Years limited warranty on Power output.
3 Years limited warranty on materials and workmanship
Specification
|
Type |
150W |
|
Mono or Poly |
Poly |
|
Maximum power (Wp) |
150 |
|
Maximum Power voltage (V) |
18.0 |
|
Maximum Power current (A) |
8.34 |
|
Open circuit voltage (V) |
21.6 |
|
Short circuit current (A) |
9.09 |
|
Number of cells (Pcs) |
36 |
|
Size of module (mm) |
1480*680*40mm |
|
Temperature coefficients of Pm (%) |
-0.47%/℃ |
|
Temperature coefficients of Isc (%) |
-0.35%/℃ |
|
Temperature coefficients of Voc (%) |
0.05%/℃ |
|
Temperature Range |
-40℃-85℃ |
|
Tolerance Wattage (e.g. +/-5%) |
+3% |
|
Weight per piece (kg) |
11.0kg |
|
Module Efficiency (%) |
>15.36% |
|
Frame (Material, Corners, etc.) |
Aluminum |
|
Standard Test Conditions |
AM1.5 1000W/m2 25℃ |
|
|
