Home Solar Power Generator Mono Crystalline Solar Panel

Home Solar Power Generator Mono Crystalline Solar Panel
Home Solar Power Generator Mono Crystalline Solar Panel

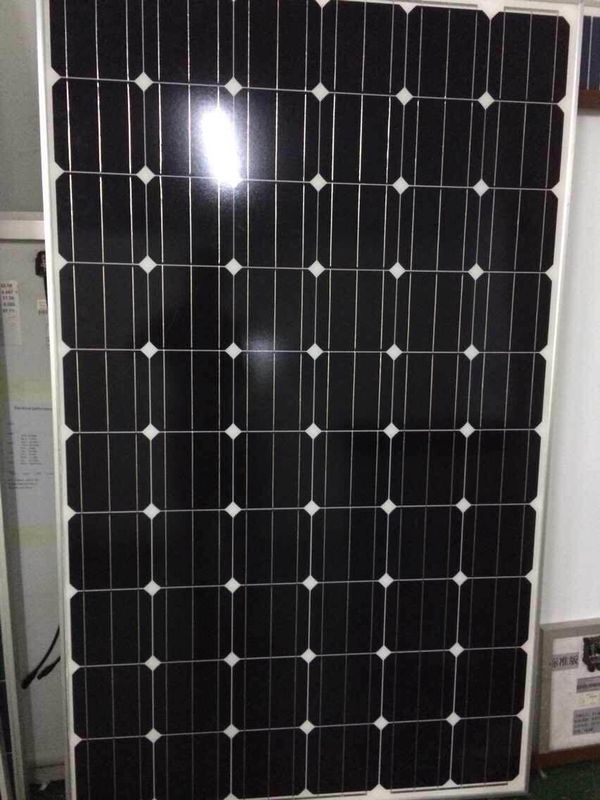

Large Image :  Home Solar Power Generator Mono Crystalline Solar Panel

Product Details:
Place of Origin: China
Brand Name: Clients Appointed Brand
Certification: CE/CSA/TUV
Model Number: 250W
Payment & Shipping Terms:
Minimum Order Quantity: 1 40HQ Container
Price: Negotiation
Packaging Details: Carton Package or Natural Package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 3,0000pcs per month
Detailed Product Description
Product Name: 250W Good Quality Solar Panel Applicant: Home Solar Power Generator
Size Of Panel: 1940*992*40 Solar Cells Style: 156*156
Solar Cells Array: 6*10 Pcs Max Output Power: 250W
Standard: CE/CSA/TUV Grade: A Grade
Weight: 19.5Kg
High Light:

hail proof solar panels

,

high power solar panels

A Grade  250 Watt Mono Solar Panel 1640 x 992  Solar Stocks Cell Germany



Features



High efficiency solar cells

High transparent low – rion tempered glass

Water resistant junction box

Anodized aluminiu frame

Design to meet unique demand of customer





Cells

Polycrystalline silicon solar cells 156*156mm

Number of Cells

60(6*10)

Dimensions (mm)

1642 994 x40mm

Weight (kg)

22





Specification



Type

250W

Mono or Poly

Mono

Maximum power (Wp)

250

Maximum Power voltage (V)

30.2

Maximum Power current (A)

8.19

Open circuit voltage (V)

37.6

Short circuit current (A)

8.6

Number of cells (Pcs)

60

Size of module (mm)

1940*992*40mm

Temperature coefficients of Pm (%)

-0.47%/℃

Temperature coefficients of Isc (%)

-0.35%/℃

Temperature coefficients of Voc (%)

0.05%/℃

Temperature Range

-40℃-85℃

Tolerance Wattage (e.g. +/-5%)

+3%

Weight per piece (kg)

19.5kg

Module Efficiency (%)

>15.36%

Frame (Material, Corners, etc.)

Aluminum

Standard Test Conditions

AM1.5 1000W/m2 25℃
