Street Lighting Wind Solar Hybrid System , Gel Battery / Smart Control

China Street Lighting  Wind Solar Hybrid System , Gel Battery / Smart Control supplier

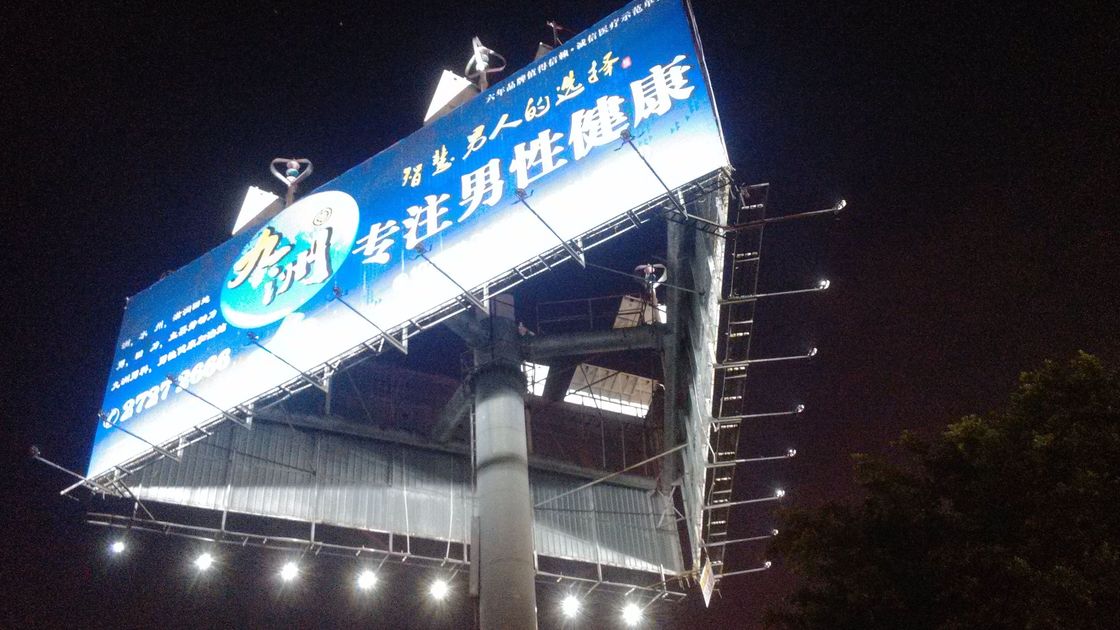

Large Image :  Street Lighting Wind Solar Hybrid System , Gel Battery / Smart Control

Product Details:

Place of Origin: China
Brand Name: TYPMAR
Certification: CE, ISO9001, IEC61400
Model Number: CXF-300W

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/ month
Contact Now
Detailed Product Description
Safety: Good Mancraft And Material In Manufacturing Unique: TYPMAR Patented
Solar Panel: 120W LED Lamps: 80W
Life Span: More Than 20 Years Application: For Street Lighting



Street Lighting Solar Wind Hybrid Power System Gel Battery / Smart Control


Quick Detail

1. Start up at 1.0 m/s, cut in wind speed 2.5 m/s
2. Lightning rod built in wind turbine body
3. Maglev technology firstly applied to wind turbine area, direct drive, no mechanic friction
4. Savonius Turbine and Darrieus Turbine are combined, perfect work in breeze and strong wind
5. Certificate: SGS, CE, ISO9000
6. Monthly production: 1000pcs

Description

Our 300W Maglev wind turbine mainly designed for hybrid street lighting use, the wind turbine is easy starting up, light weight and small in size. While the hybrid street lighting system installed, you can find it’s a beautiful view for the urban city as well as the following benefits.

Design:
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction
 Wind Solar Hybrid Street Light System With Doulbe LED Lamps

Control:
• Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane
• Real-time remote monitoring system can monitor and acquire data and equipment performance

The intelligent controller has three main functions:

  1. Prevent battery overcharge and over discharge
  2. Change AC into DC
  3. Can be set time, RPM and light control with time control to street light


LED Lamp
Self-research and design, use CREE brand chip, high-strength tempered glass with better light transmission and UV resistance. Power efficiency was higher than 93%, 50000 hours life span with intelligent dimming function.

Solar Panel
Generally we use MONO silicon solar panel that it transform efficiency can be get 18% above

Battery
Used lead-acid or GEL batteries, usage time between 3 to 5 years. Wanted more battery usage time please use lithium iron phosphate battery


Application

The 300w wind turbine, 12V and 24V for option, is ideal for wind solar hybrid street lights or LED light for parking lots. The unit provides a durable, reliable, and fully customized hybrid solution to wind solar hybrid power systems.

Specification


Rated power

Approx. 300Wh at 13 m/s (26 mph)

Swept Area

0.8 m2

Height / Diameter

1.23/1.09 m

Weight

27 kg

Shipping Dimensions

1160 x 520 x 790 mm  56 kg

Startup Wind Speed

1 m/s (2.6 mph)

Voltage

12, and 24 V AC

Turbine Controller

Smart Wind $ solar hybrid controller

Body

Permanent mold cast aluminum

Blades

(7) Injection-molded aluminum

Alternator

Permanent maglev generator

Overspeed Protection

3 phases short-circuit braking control

Survival Wind Speed

65m/s

Mount

Inner diameter 80MM 140mm outer diameter

Wind Speed Operating Range

1-15 m/s (8-49 mph)

Optimum Wind Speed Range (RPM)

8-10 m/s ( 750-800RPM)



Advantages


HAWT AND MVAWT

Item

Horizontal axis (HAWT)

Vertical axis (EML)

Start wind speed

High(≥3m/s)

Low(1m/s)

Wind conditions required

Require stable wind direction

Any wind direction

 Encountered turbulence

Reduce the efficiency

Efficiency is not affected

Power stability

Change by wind direction

Without any wind effect

Noise

Large(45 decibels or more)

Low noisy                                         (because there is no mechanical friction)

Product appearance

Normal

Beautiful

Installation height

High(need to avoid the terrain turbulence)

Low(not afraid of  turbulence)

Installation location

Just in open area like suburb

Any location

Generator material

Plastic or composite

metal

Structure strength

Poor (easy to broken)

High(double strengthen arm)

Resistance of wind speed

Poor(about 40 m/s)

High


Street Lighting  Wind Solar Hybrid System , Gel Battery / Smart Control
