Double Sided Aluminum PCB For LED Lighting , Aluminium Core PCB

China Double Sided Aluminum PCB For LED Lighting , Aluminium Core PCB supplier

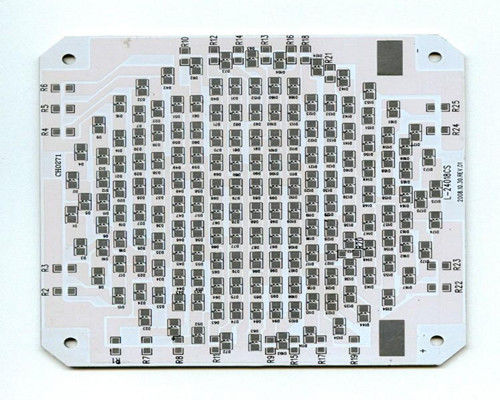

Large Image :  Double Sided Aluminum PCB For LED Lighting , Aluminium Core PCB

Product Details:

Place of Origin: China
Brand Name: HD-PCB
Certification: UL,ISO9001,TS16949.
Model Number: Aluminum PCB -3

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: Negotiation
Packaging Details: Packed in antistatic bag
Contact Now
Detailed Product Description


Double Sided Aluminum PCB For LED Lighting , Aluminium Core PCB

Quick Details


PCB Type:

Aluminum PCB

Layer :

 Single Side

Min .Line Width/Space:

3mil/3mil

Min. Via Diameter:

0.3mm

Finish Thickness:

2.0mm

Surface Finish:

HASL

Size:

120*120MM

Material:

Aluminum base

Color:

White

Application:

LED



Description


Shenzhen Hengda specialized in  Aluminum Printed Circuit Boards (also called Metal base PCBs) for over 10 years. Although originally envisioned for use in the power-supply industry these substrates are now most widely used in High Brightness LED products. There are many names for these products; Aluminum clad, aluminum base, Metal core(MCPCB), Insulated Metal Substrate(IMS or IMPCB), Thermally conductive PCBs, etc… but they all mean the same thing. A thin layer of  thermally conductive but electrically insulating dielectric is laminated between a metal base and a copper foil. The copper foil is etched into the desired circuit pattern and the metal base draws heat away from this circuit through the thin dielectric.
   Using a metal core PCB in these LED products and applications help to greatly reduce the heat emitted.
Other applications that are ideal for MCPCB integration are solar panels and motion control applications. We can also combine metal core with our HDI PCB technology.


Double Sided Aluminum PCB For LED Lighting , Aluminium Core PCB



Metal Core PCB Materials and Thickness

The metal core of the thermal PCB can be aluminum (aluminum core PCB), copper (copper core PCB or a heavy copper PCB) or a mixture of special alloys. The most common is an aluminum core PCB.
The thickness of metal cores in PCB base plates is typically 30 mil - 125 mil, but thicker and thinner plates are possible.MCPCB copper foil thickness can be 1 - 10 oz.

Advantages of MCPCB

MCPCBs can be advantageous to use for their ability to integrate a dielectric polymer layer with a high thermal conductivity for a lower thermal resistance.
Metal core PCBs transfer heat 8 to 9 times faster than FR4 PCBs. MCPCB laminates dissipate heat, keeping heat generating components cooler which results in increased performance and life.

Products with Aluminum based pcb

Applications that generate a large amount of heat often cannot be adequately cooled using just traditional fans. Conductive cooling through metal core PCBs are an ideal production option.


MCPCBs are most widely found in LED technologies, as they reduce the number of LEDs required to produce a specific illumination. Light emitting diodes release a great amount of heat in applications such as

  • Automotive: Head lights, Tail light assemblies, Running side markers, Dash board, interior lighting.
  • Military: Head lights, Running lights, Spot lights, Signal beacons, High power flash lights, Power converters, Power supplies, Power transmission systems, Ignition systems, Power distribution products.
  • Aerospace: Aircraft landing lights, Running lights, Cabin mood lighting systems, Spot light and general lighting.
  • Consumer: Street lighting, Traffic control lighting, Interior building lights, Landscape lighting, Camping gear.
  • Medical: Operating room lighting, Surgical lighting tools, High power scanning technology, Power converters.



Technical Capabilities


Number of layers

1, 2, 4 or 6, up  to 36 layers

Order Quantity

1 to 500,000

Board shape

Rectangular, round, slots, cutouts, complex, irregular

Board type

Rigid, flexible, rigid-flexible

Board material

FR4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc.

Board cutting

Shear, V-score, tab-routed

Board thickness

Flex, 0.2 ~ 6.0 mm, 0.01 ~ 0.25″

Copper weight

1.0, 1.5, 2.0 Oz

Solder mask

Double-sided green LPI, Also support red, white, yellow, blue, black

Silk screen

Double-sided or single-sided in white, yellow, black, or negative

Silk screen min line width

0.006″ or 0.15mm

Max board dimensions

45 x 45″ or 114 x 114 cm

Min trace/gap

0.004”, 0.1mm, or 4 mils

Min drill hole diameter

0.006”, 0.15mm, or 6 mils

Surface finish

HASL,Nickle, Imm Gold,Imm Tin,Imm Silver, OSP etc.

Board thickness tolerance

±10%

Copper weight tolerance

±0.25 oz

Minimal slot width

0.12”, 3.0 mm, or 120 mils

V-score depth

20-25% of board thickness

Plated through holes

Yes

Sink holes

Yes

Design file format

Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG




PCB Production Flow Chart

Double Sided Aluminum PCB For LED Lighting , Aluminium Core PCB



Testing Procedures

We perform multiple quality assurance procedures before shipping out any PCB board. These include:

  • Visual Inspection
  • Flying probe
  • Bed of nails
  • Impedance control
  • Solder-ability detection
  • Digital metallograghic microscope
  • AOI (Automated Optical Inspection)


Quick turn lead times

For HDI PCB production, we can provid 7 to10 days turn around times. For multilayer PCBs, the fastestturnaround time depends on the number of layers and quantity.

Service Guarantee

We make sure to serve each customer professionally, truthfully and friendly to the best of our ability.   We will gladly re-work your project if your project isn’t 100% satisfactory.


Get a quick quote now

By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
