230W Molycrystalline Solar Panels withstand 2400Pa Wind Load , 5400Pa Snow Load

230W Molycrystalline Solar Panels withstand 2400Pa Wind Load , 5400Pa Snow Load


1> Basic information

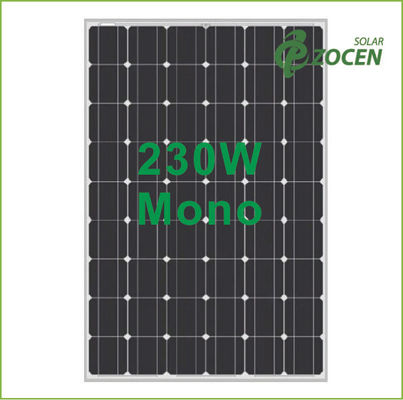

• Item: 230W mono solar panel
• Model: ZCM6-54P-230W
• Cells: 54pcs in a 6*9
• Warranty: 10 years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25 years.
• Panels meet highest international standards ISO9001 and ISO14001 and are certified with TUV, IEC61215, IEC61730, CE, CQC, CEC, MCS, BV
• Chubb Insurance: Product Liability Insurance (PCO) and Errors or Omissions Liability Insurance (E&O)
• Safety Grade: Class II

2> Solar panels structure

• Solar Cell:  A Grade monocrystalline hign efficiency cells
• Front Cover: 3.2mm thicknesss PV solar glass, anti-reflective coating, enhanced stiffness and impact resistance, withstand 2400Pa wind load, 5400Pa snow load
• Back Cover: TPT(Tediar-PET-Tediar)
• Encapsulant: EVA(Ethylene vinyl acetate), encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation

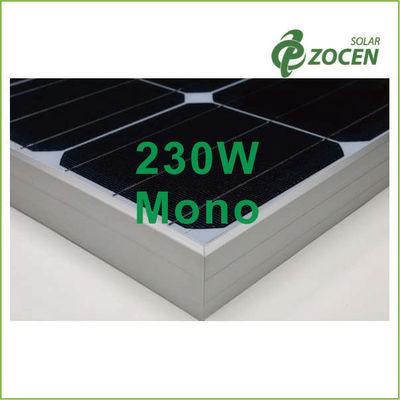

• Frame: Anodized aluminum alloy, double wall, allows panels to be easily roof-mounted with a variety of standard mounting systems.

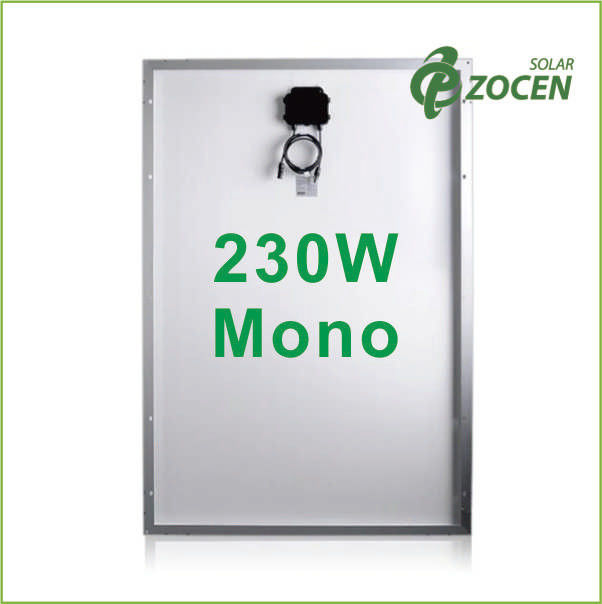

• Junction Box: Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes
• Diodes: 6 Bypass diodes serviceable, minimize the power drop caused by shade.
• Connector: MC4 or compatible connector
• Cables: Length:1000mm,/Section:4.0mm2

3> Features

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-year limited warranty on power output and performance.
• 12-year Limited warranty on materials and workmanship.
• Blowing sand resistance certification
• Anti-PID
• Fire test certification
• Ammonia corrosion certification
• Salt mist corrosion certification.


4> 220W PV Monocrystalline Solar Panel Electrical Characteristics

• Maximum Power(Pmax): 230W
• Power Tolerance: 0~+3%
• Open Circuit Voltage(Voc): 34.0V
• Short Circuit Current(Isc): 8.80A
• Maximum Power Voltage(Vmp): 27.50V
• Maximum Power Voltage(Imp): 8.37A
• Max. System Voltage: IEC:1000V / UL:600V


5> 225W Photovoltaic Polycrystalline Solar PanelPacking configuration



6> Quality Control

• Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
• Manufacturing facility certifed to ISO9001 Quality Management System standards.
• Module packaging optimized to protect product during transportation and minimize on-site waste.
